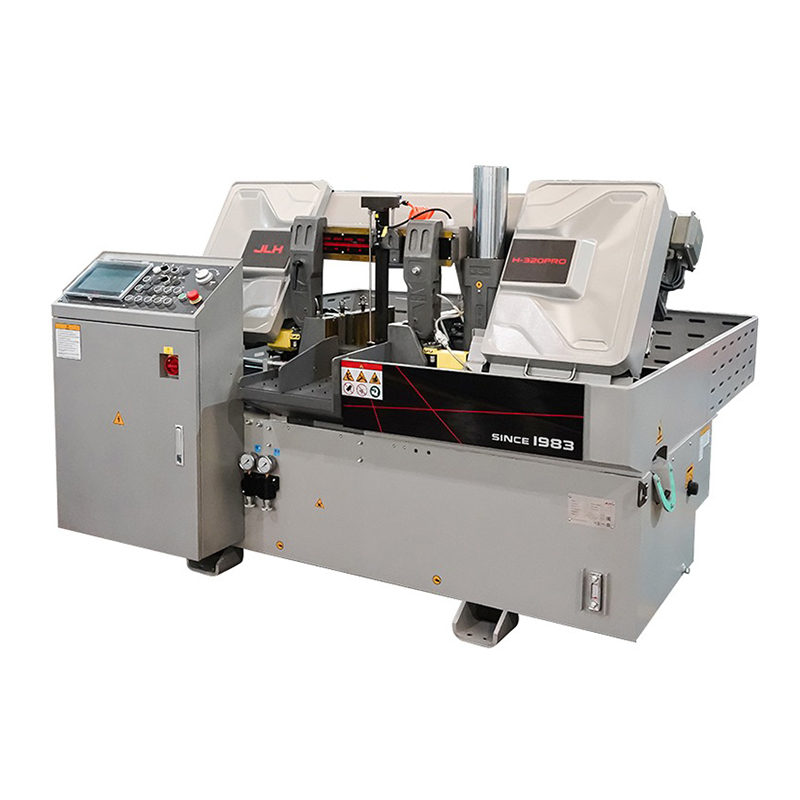

Standard Series
HMI and button controls, Automatic bundle clamp, Variable frequency drive, Hydraulic blade tension, Motorized chip brush, cleaning, Chip conveyor, LED work light, Hydraulic oil heat exchanger, Floating material feeding vise, Directly coupled gearbox with special magnetic motor, SAW MASTER 1.0 (Optional)
Accessories
Chip carriage box
2 nos roller stand
2 nos saw blades
Tool kit
Specifications
| Model | HS 320 DCA | HS 420 DCA | H5 530 DCA |
|---|---|---|---|
| Capacity (mm) | 320 | 420 | 530 |
| Saw Blade Size (mm) | 320 × 320 | 420 × 420 | 530 × 530 |
| Saw Blade Specification | 4115 × 34 × 1.1 | 5150 × 41 × 1.3 | 6200 × 41 × 1.3 |
| Saw Blade Motor (kW) | 4 | 10–80 | 20–80 |
| Hydraulic Motor (kW) | 0.75 | 1.5 | 1.5 |
| Coolant Pump Motor (kW) | 0.09 | 0.135 | 0.135 |
| Hydraulic Oil Tank (L) | 60 | 70 | 70 |
| Cutting Oil Tank (L) | 90 | 120 | 140 |
| Machine Size (mm) | 2250 × 2300 × 1550 | 2250 × 2630 × 1650 | 2250 × 3100 × 1950 |
| Machine Weight (kg) | ≈ 1700 | ≈ 2500 | ≈ 3300 |
| Drive System | Gearbox | Gearbox | Gearbox |
| End Piece Length (mm) | 160 | 180 | 285 |
| Table Height (mm) | 666 | 666 | 775 |
