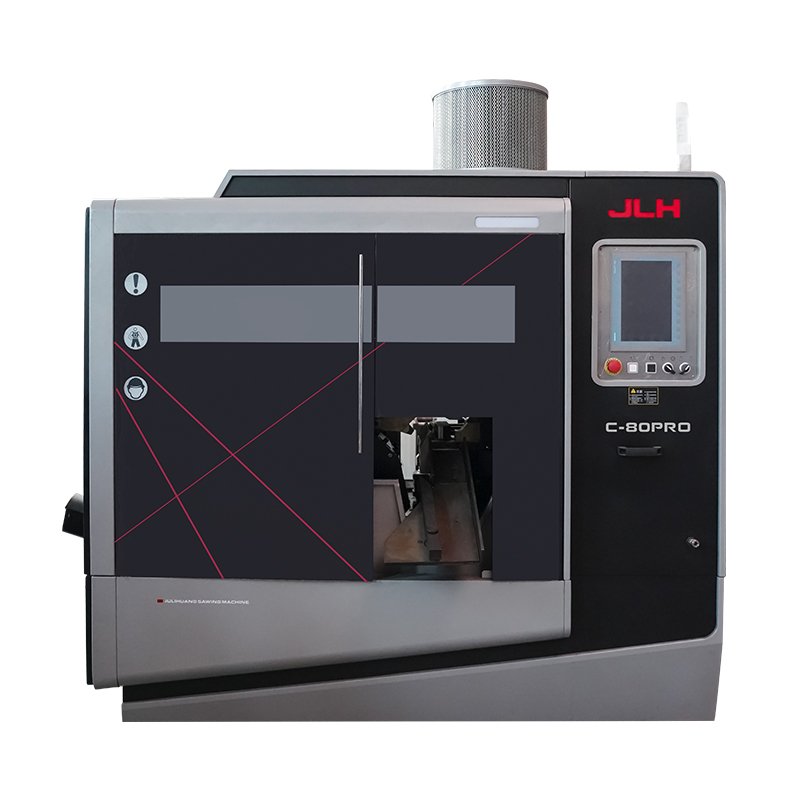

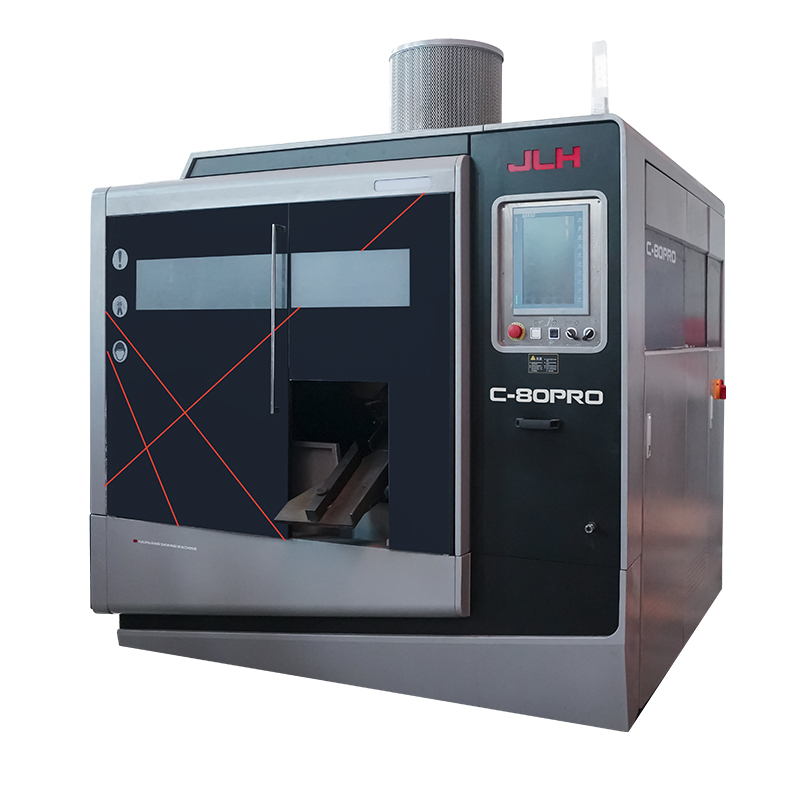

PRO Series

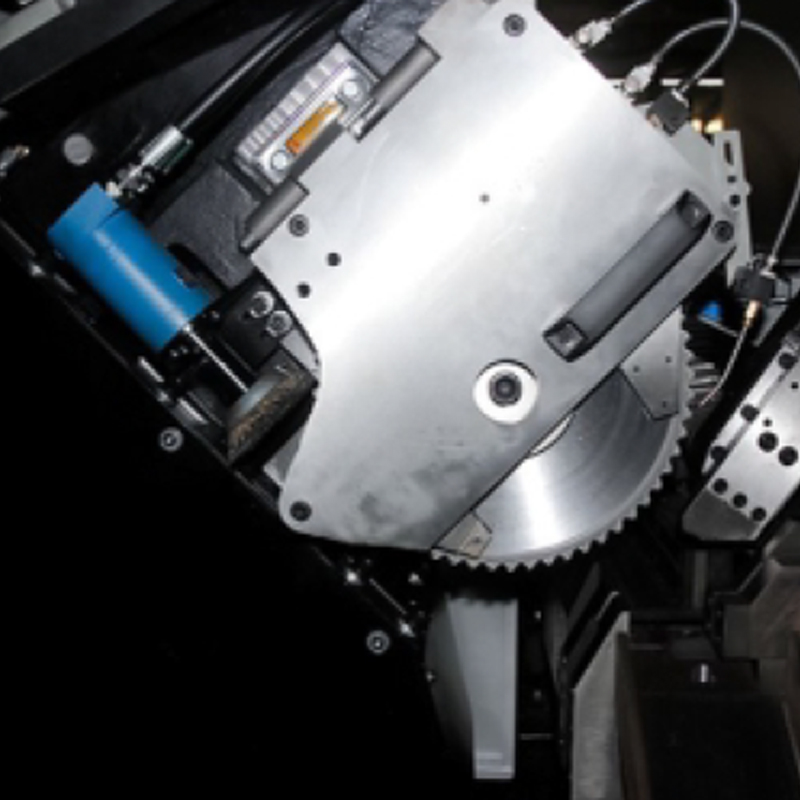

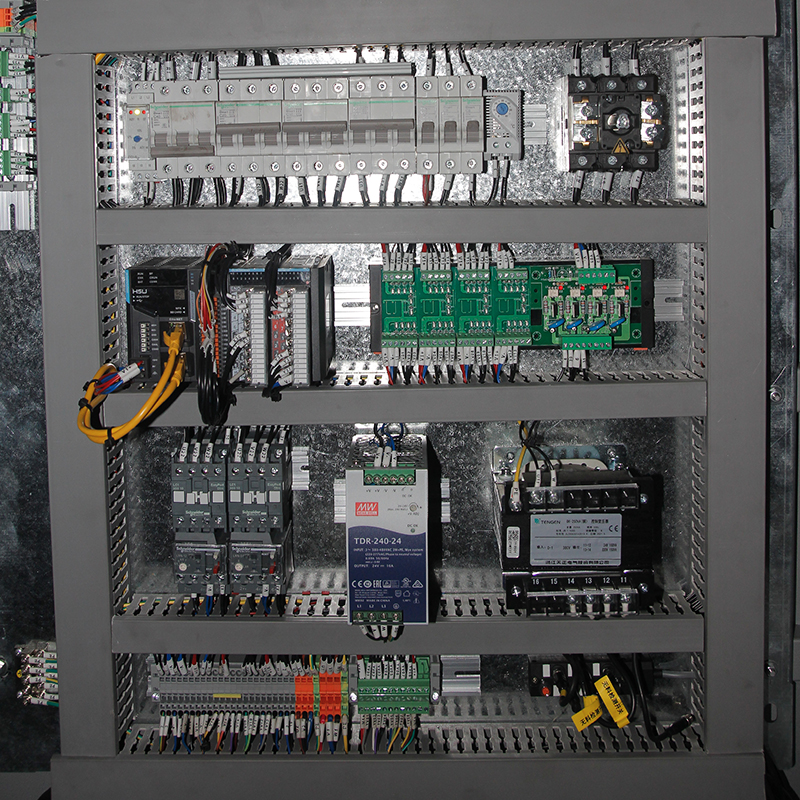

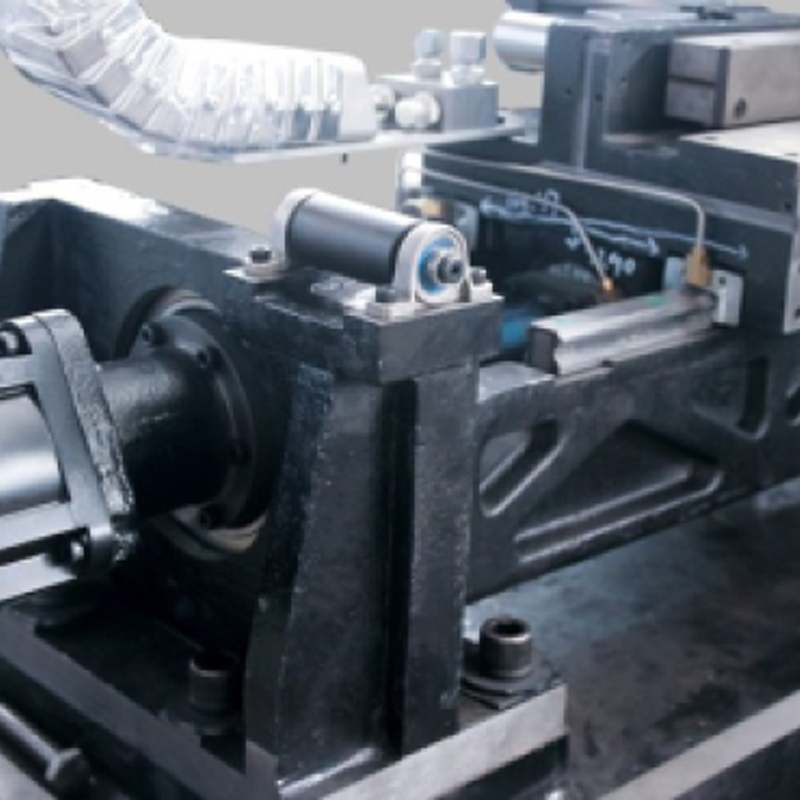

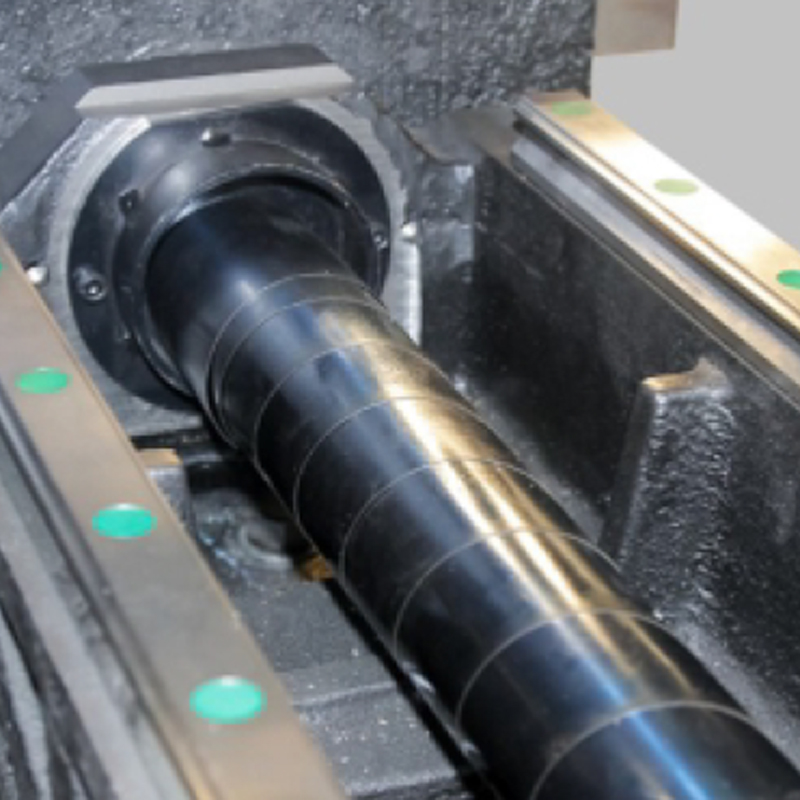

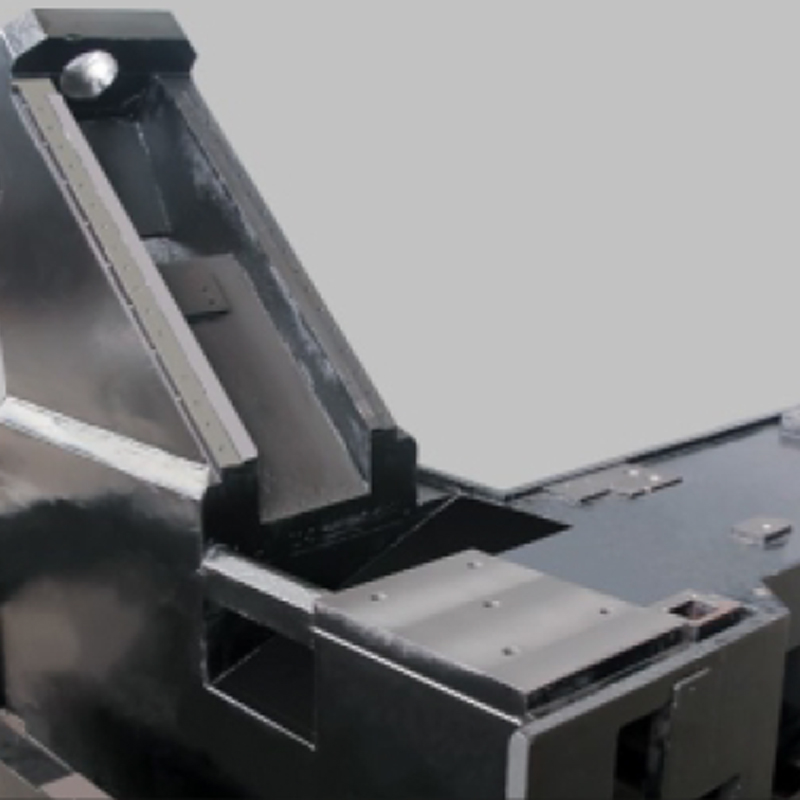

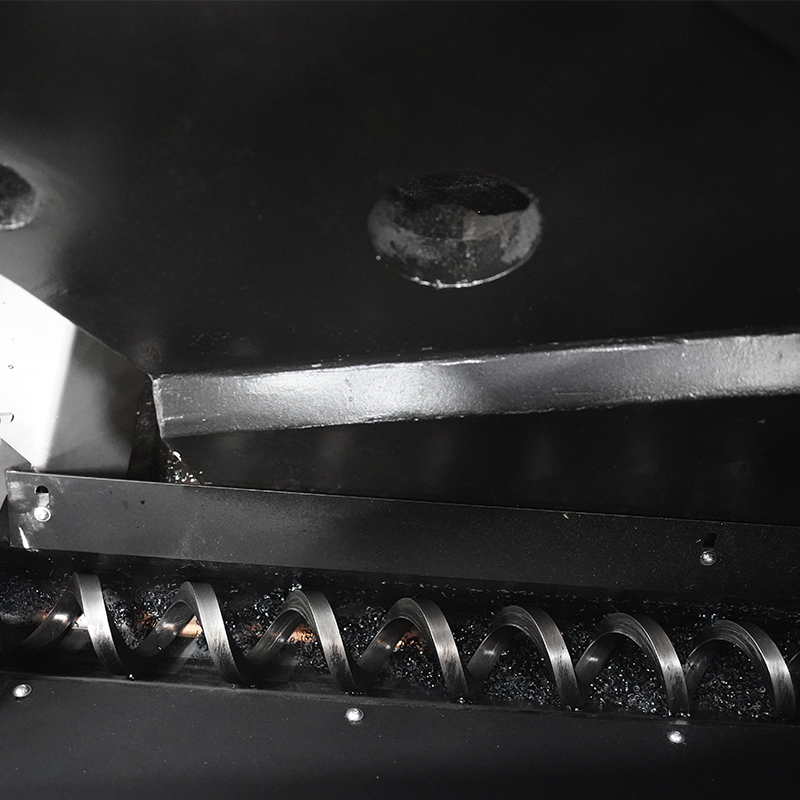

User friendly control panel, 45° Inclined feeding mechanism, Single piece casting base, Special gear box design, Lift & carry material, feeding mechanism, AI SAW MASTER, Smoke collectror, Automatic lubrication system, Air-conditioner electric panel, Motorized chip brush cleaning, Chip conveyor, LED work light, Hydraulic oil heat exchanger
Accessories
Chip carriage trolley
Automatic material loader
Automatic discharge conveyor (optional)
2 nos saw blades
Tool kit
Technical Details
| Model | Capacity (mm) | Capacity 2 (mm) | Blade Size (mm) | Blade Speed (m/min) | Blade Drive Motor (kW) | Hyd. Pump Motor (kW) | Feed Motor (kW) | Material Feeding Motor (kW) | Hyd. Oil (L) | Cutting Oil (L) | Machine Size (W × L × H) (mm) | Machine Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| C-80PRO | 15–80 | 15–60 | 315 × 2.25 | 30–160 | 11 | 2.2 | 2.9 | 0.85 | 60 | 2 | 2250 × 2300 × 2300 | 4200 |
| C-100PRO | 20–100 | 20–70 | 360 × 2.6 | 30–160 | 18.5 | 2.2 | 2.9 | 0.85 | 60 | 2 | 2300 × 2300 × 2300 | 4300 |
| C-120PRO | 35–120 | 35–75 | 4380 × 2.6 | 30–160 | 18.5 | 2.2 | 2.9 | 0.85 | 60 | 2 | 2300 × 2300 × 2300 | 4300 |
| C-150PRO | 50–150 | 50–100 | 460 × 2.7 | 20–100 | 18.5 | 3.75 | 2.9 | 1.3 | 110 | 2 | 3650 × 2500 × 2650 | 7000 |
| C-200PRO | 80–200 | 80–155 | φ750 × 3.8 | 12–85 | 30 | 5.5 | 5.5 | 2.9 | 150 | 2 | 4500 × 2800 × 3000 | 11500 |
| C-260PRO | 100–260 | 100–200 | 840 × 4.0 | 12–75 | 30 | 5.5 | 5.5 | 2.9 | 150 | 2 | 4500 × 2800 × 3000 | 12000 |
| C-300PRO | 120–300 | 120–250 | 4960 × 4.0 | 10–65 | 30 | 5.5 | 5.5 | 2.9 | 150 | 2 | 4500 × 2800 × 3000 | 12500 |
Cutting Samples
