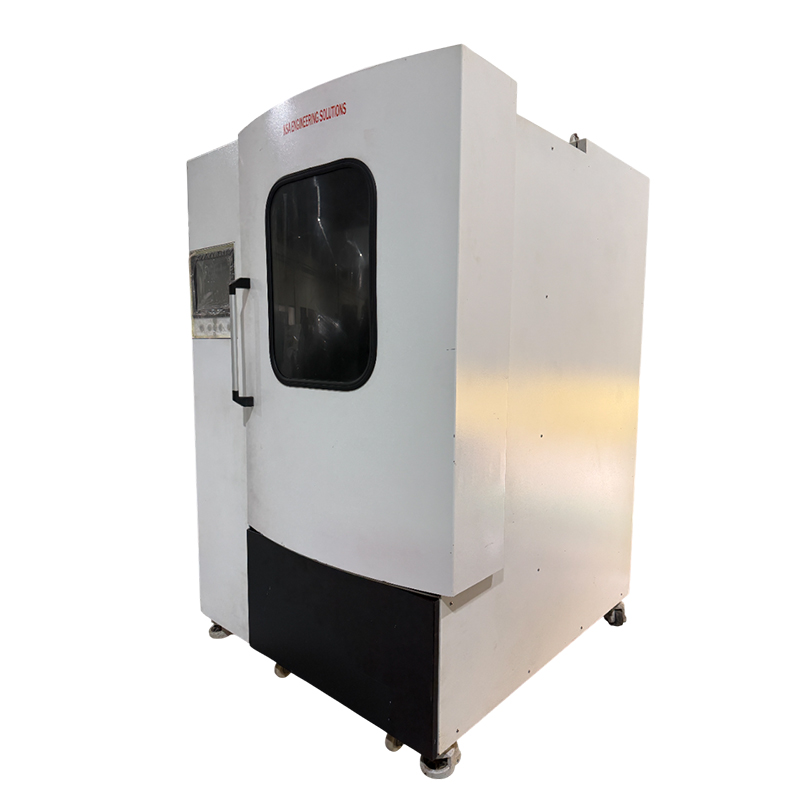

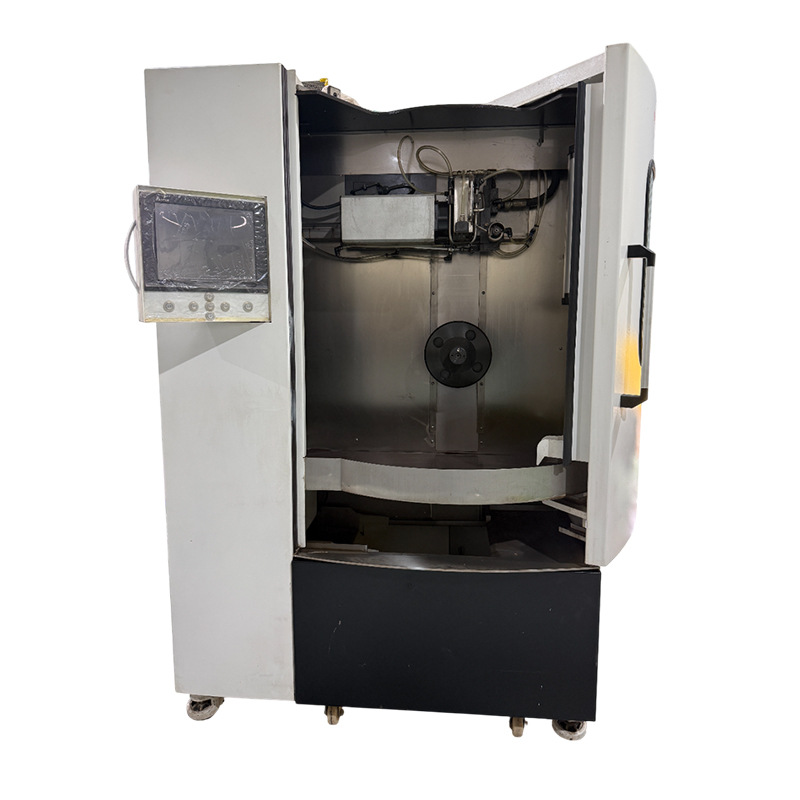

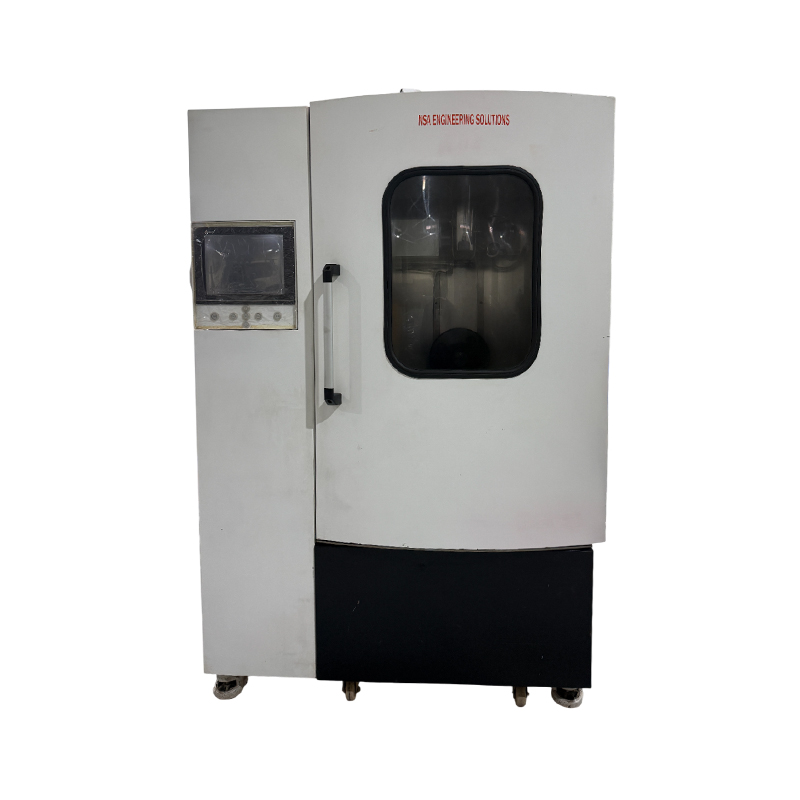

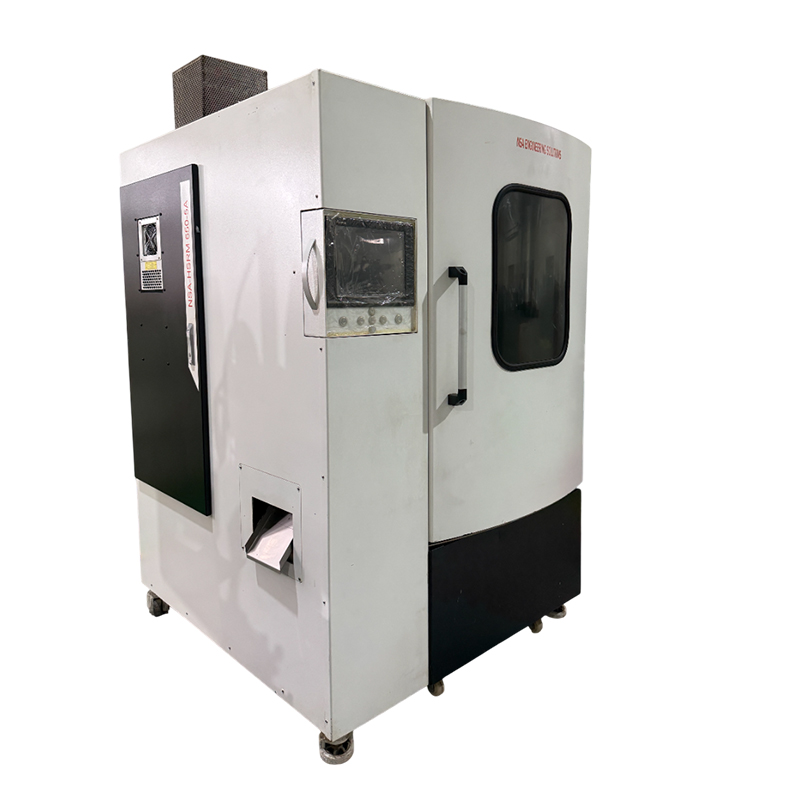

HSS CS Blade Sharpening Machine
Auxiliary tools: A full set of accessories and related tools used with automatic gear grinding machine, including: a set of toolbox, two sets of chuck, two grinding wheels, Two grooved grinding wheels,a grinding wheel correction knife, and a manual.
Technical Details
| Parameter | Specification |
|---|---|
| Control System | Motion control system developed in cooperation with universities |
| Grinding Type | External |
| Grinding External Diameter | 180 – 650 mm |
| Grinding Pitch | T2 – T22 mm |
| Grinding Teeth Range | 30 – 500 mm |

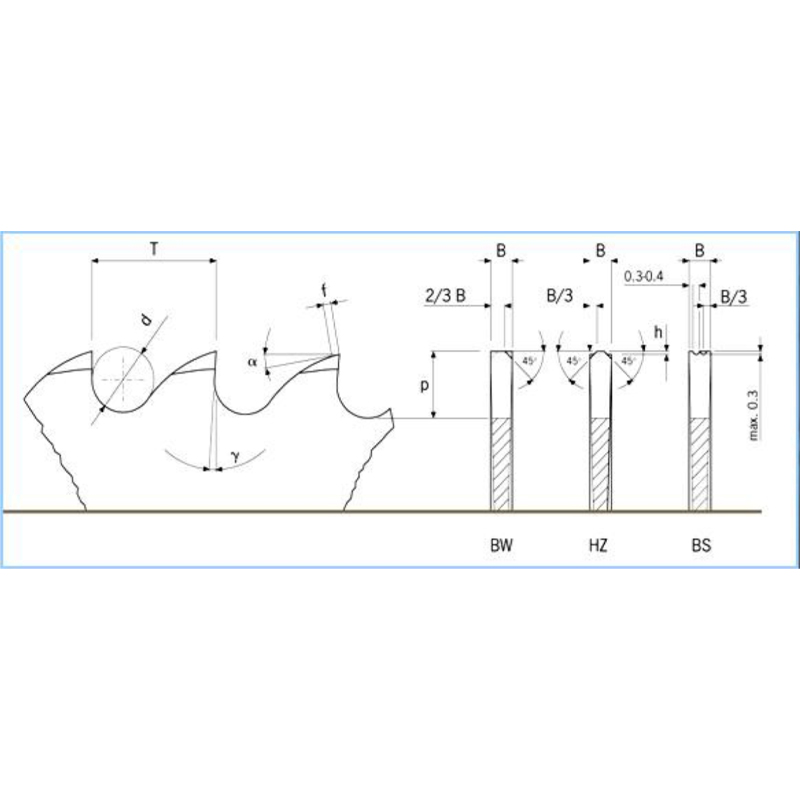

| Grinding Tooth Shape | Triangular teeth & chamfer, Arc teeth & chamfer, High & low teeth & chamfer |
| Maximum Saw Blade Thickness | 5.0 mm |
| Saw Blade Grinding Angle | Front angle 1–24°, accuracy ±1° |
| Chamfer Angle & Accuracy | 45° ±1°, ±0.05 mm |
| Tooth Depth & Tooth Bottom Arc Accuracy | ±0.01 mm, R ±0.01 mm |
