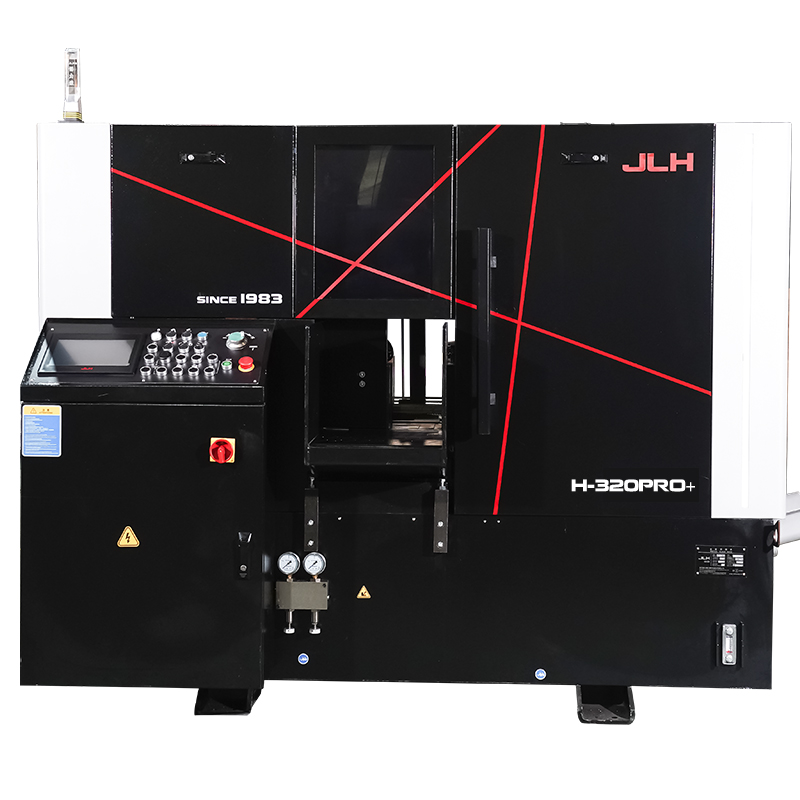

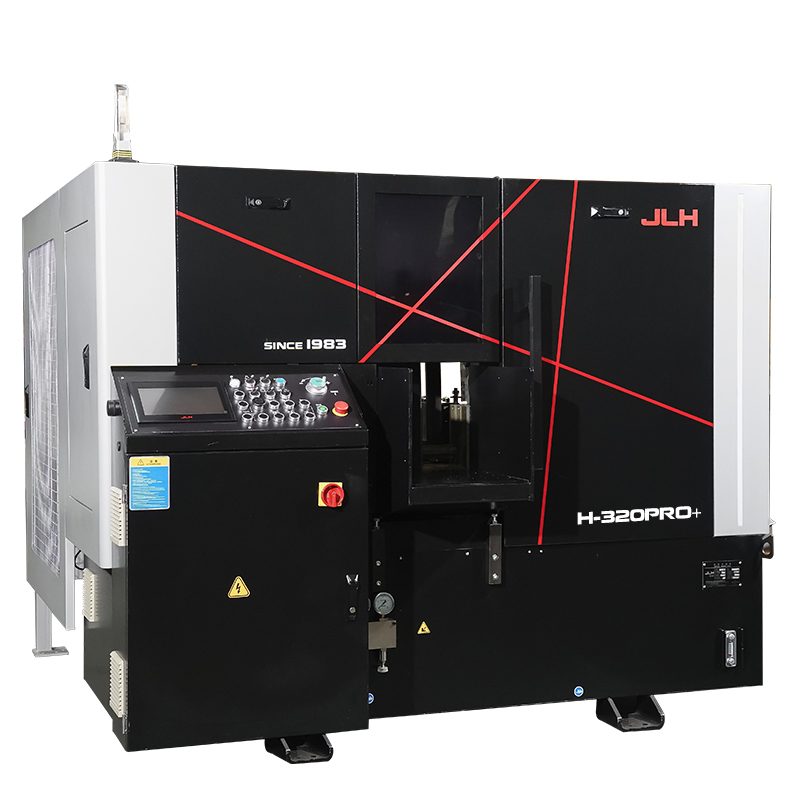

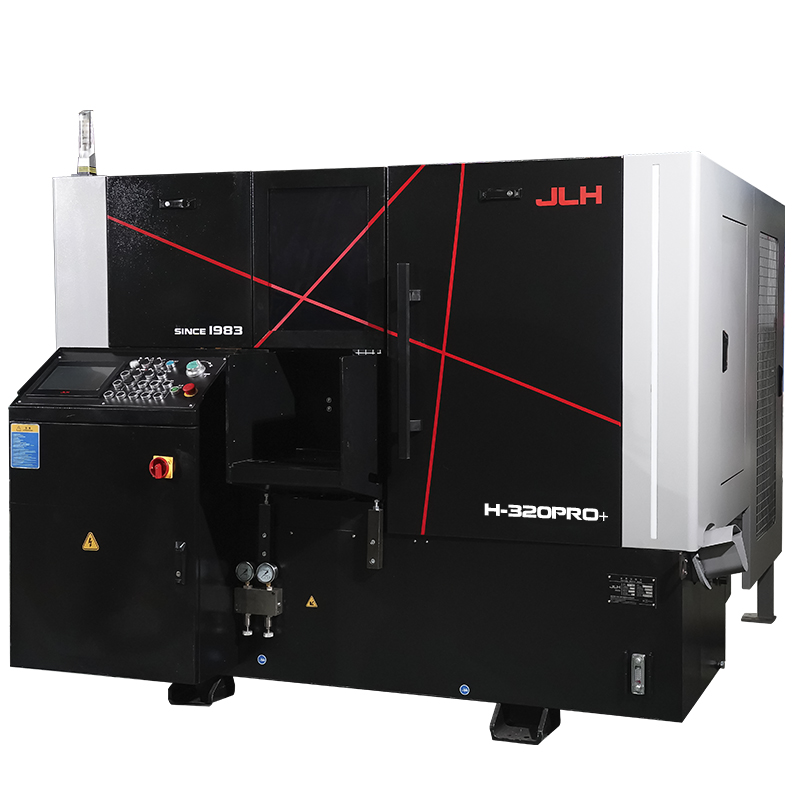

H-Pro Series

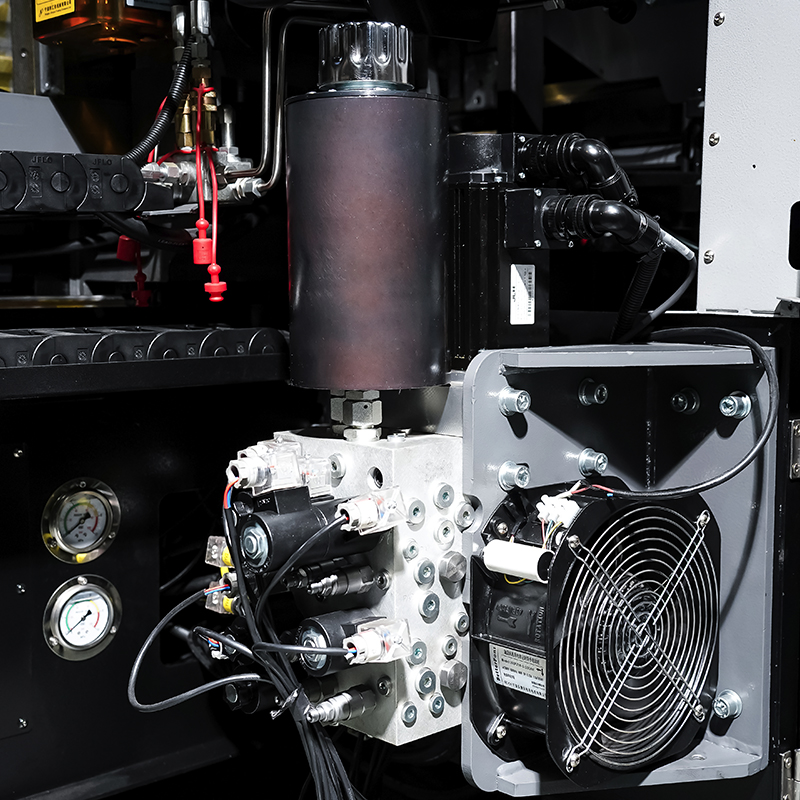

HMI and button controls, Automatic bundle clamp, Variable frequency drive, Hydraulic blade tension, Motorized chip brush, cleaning, Chip conveyor, LED work light, Hydraulic oil heat exchanger, Floating material feeding vise, Directly coupled gearbox with special magnetic motor, AI SAW MASTER – 1.0 EHA, hydraulic control technique, Guide arm movement – Power, Carbide guide pressing – Hydraulic.
Accessories
Chip carriage box
2 nos roller stand
2 nos saw blades
Tool kit
Technical Details
| Model | H-320PRO+ | H-420PRO+ | H-530PRO+ | H-700PRO | H-1000PRO |
|---|---|---|---|---|---|
| Capacity (mm) | 320 | 420 | 530 | 700 | 1000 |
| Saw Blade Size (mm) | 320 × 320 | 420 × 420 | 530 × 530 | 800 × 700 | 1000 × 1000 |
| Saw Blade Specification | 4115 × 34 × 1.1 | 5150 × 41 × 1.3 | 6300 × 54 × 1.3 | 8100 × 54 × 1.6 | — |
| Saw Blade Speed (m/min) | 20–80 | 20–80 | 20–80 | 20–80 | 20–80 |
| Saw Blade Motor (kW) | 5.0 | — | — | — | — |
| Hydraulic Motor (kW) | 0.75 | 1.5 | 1.5 | 7.5 | 11.0 / 22.0 |
| Coolant Pump Motor (kW) | 0.135 | 0.135 | 0.135 | 0.135 | 3.7 |
| Hydraulic Oil Tank (L) | 60 | 70 | 70 | 80 | — |
| Cutting Oil Tank (L) | 90 | 120 | 140 | 100 | 150 |
| Machine Size (mm) | 2250 × 2350 × 1750 | 2220 × 2850 × 2250 | 2220 × 3150 × 2500 | 2200 × 3880 × 2860 | 4300 × 5600 × 3100 |
| Machine Weight (kg) | ≈ 1900 | ≈ 3000 | ≈ 3700 | ≈ 6300 | ≈ 17000 |
| Feeding System | EHA Precision Hydraulic Control | ||||
| Single Feeding Distance (mm) | 500 | 500 | 500 | 500 | 500 |
| Table Height (mm) | 830 | 860 | 860 | 860 | 860 |
