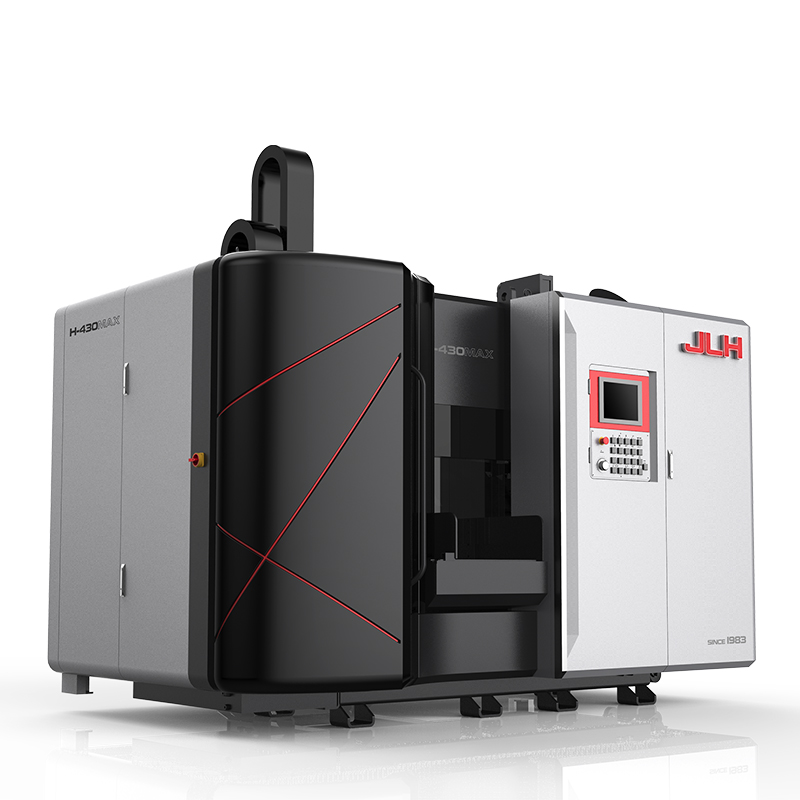

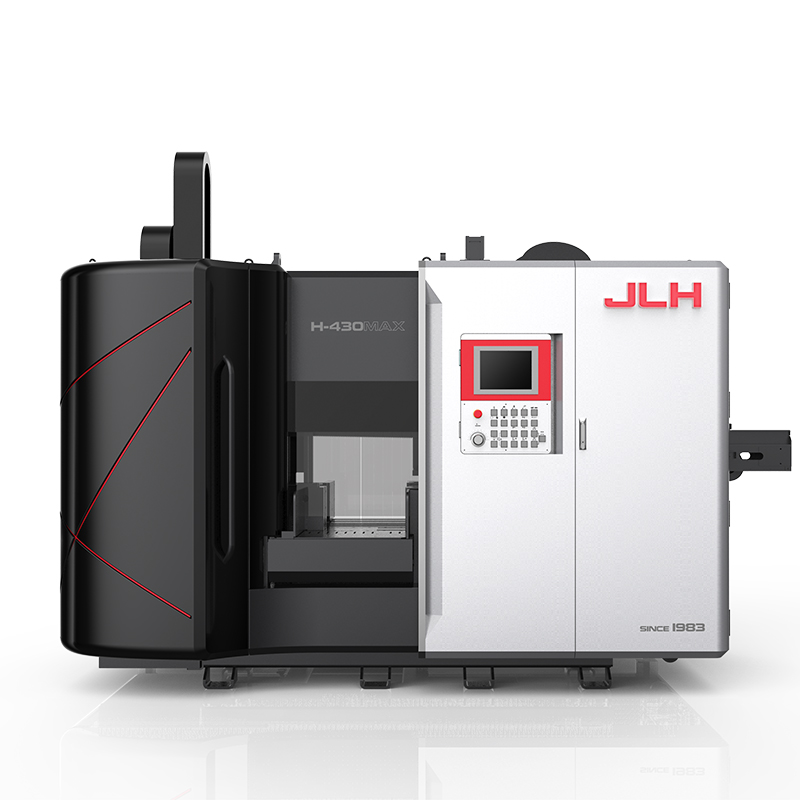

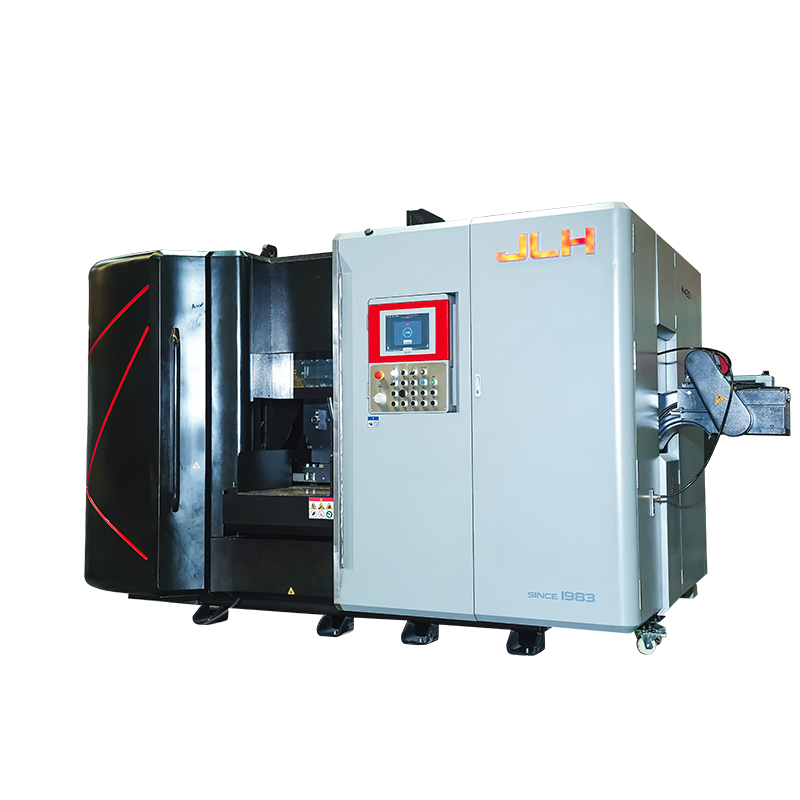

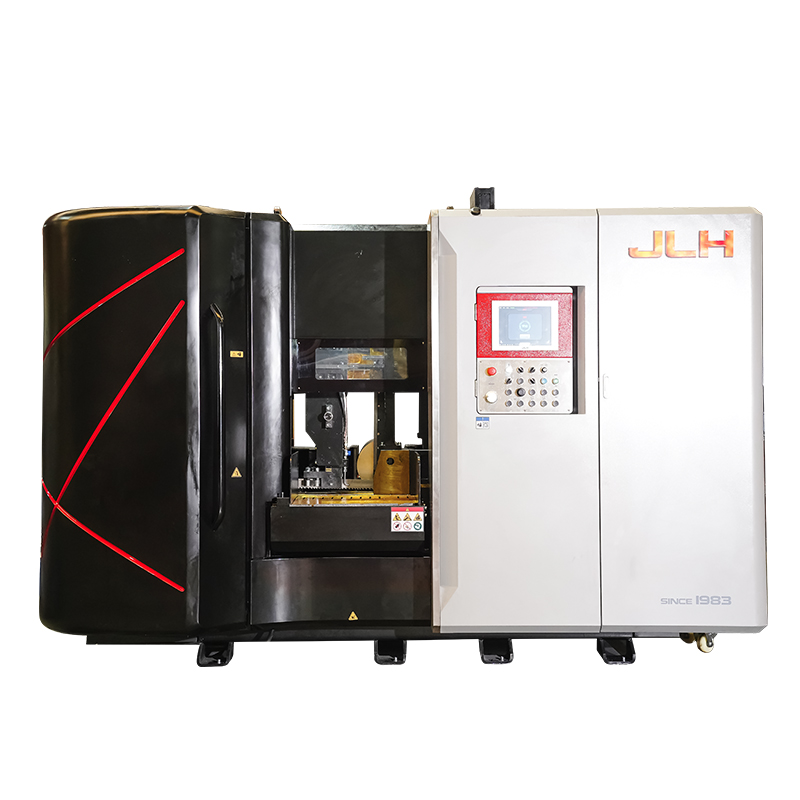

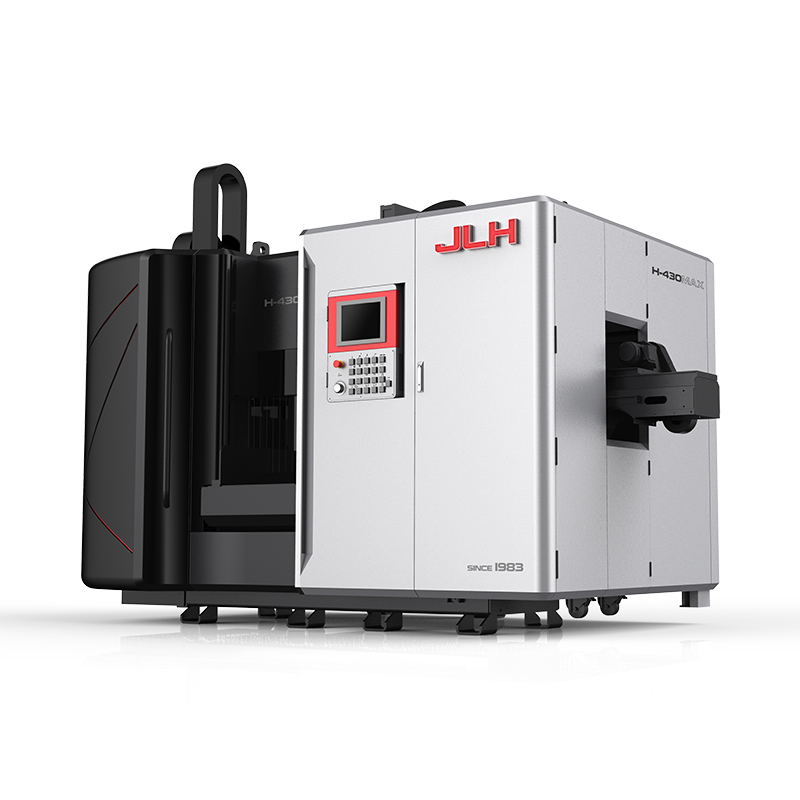

H-Max Series

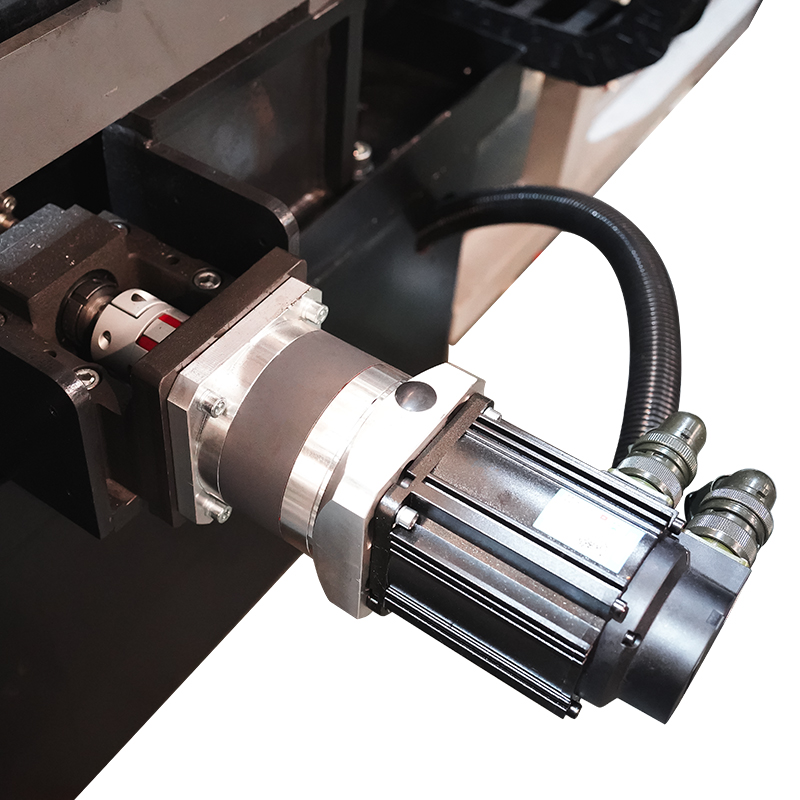

HMI and button controls, Automatic bundle clamp, Variable frequency drive, Hydraulic blade tension, Motorized chip brush cleaning, Chip conveyor, LED work light, Hydraulic oil heat exchanger, Floating material feeding vise, Directly coupled gearbox with special magnetic motor, AI SAW MASTER – 1.0, EHA hydraulic control technique, Guide arm movement – Power, Carbide guide pressing – Hydraulic
Accessories
Chip carriage box
2 nos roller stand
2 nos saw blades
Tool kit
Technical Details
| Model | H-430MAX | H-560MAX | H-800MAX |
|---|---|---|---|
| Capacity (mm) | 430 | 560 | 800 |
| Saw Frame Capacity (mm) | 430 × 430 | 560 × 560 | 800 × 800 |
| Saw Blade Specification | 6100 × 54 × 1.6 | 8400 × 67 × 1.6 | 9830 × 67 × 1.6 |
| Saw Blade Speed (m/min) | 30–150 | 20–80 | 20–80 |
| Saw Blade Motor (kW) | 7.5 | 15.0 | 22.0 |
| Hydraulic Motor (kW) | 1.5 | 3.75 | 3.75 |
| Hydraulic Oil | Cutting Oil (L) | 70 | 150 | 150 | 400 | 150 | 400 |
| Machine Size (mm) | 2480 × 3900 × 2500 | 2200 × 4700 × 2600 | 2200 × 5300 × 3000 |
| Machine Weight (kg) | 6400 | 11000 | 13000 |
| Feeding System | EHA Precision Hydraulic Control | ||
| Single Feeding Distance (mm) | 500 | 500 | 500 |
| Table Height (mm) | 805 | 700 | 700 |
