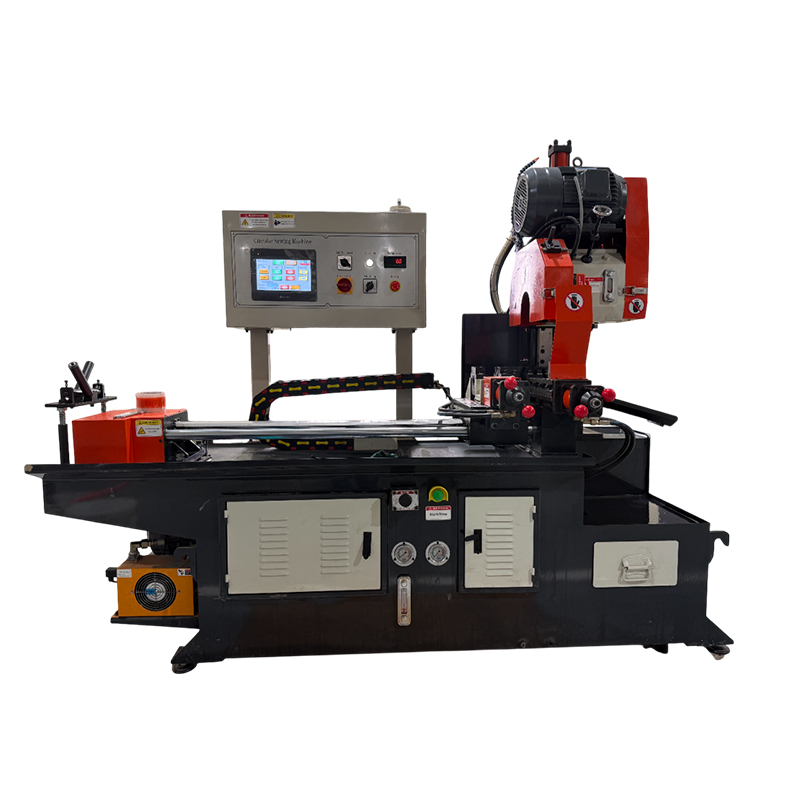

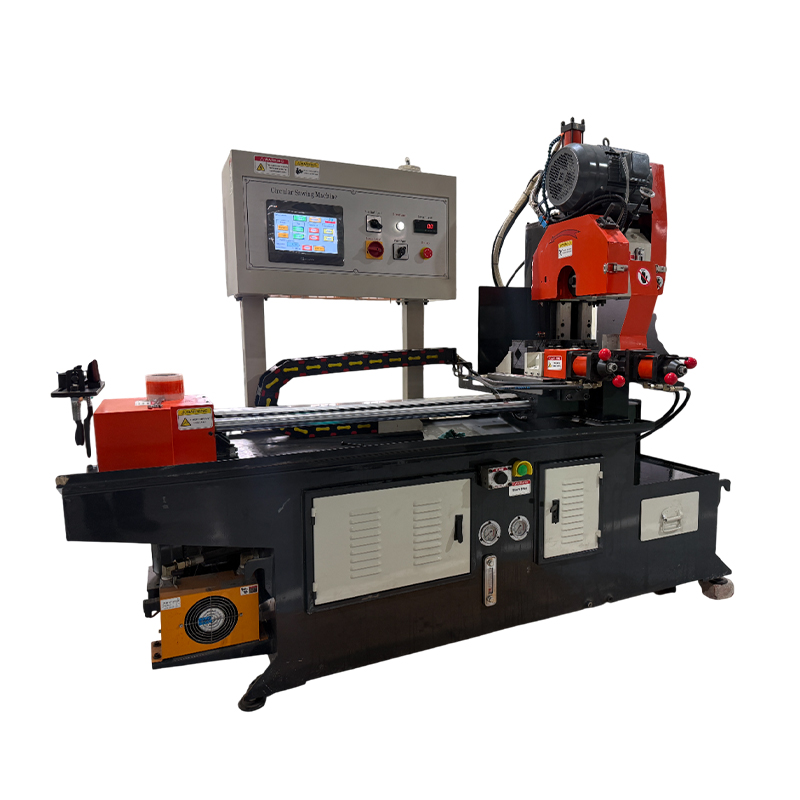

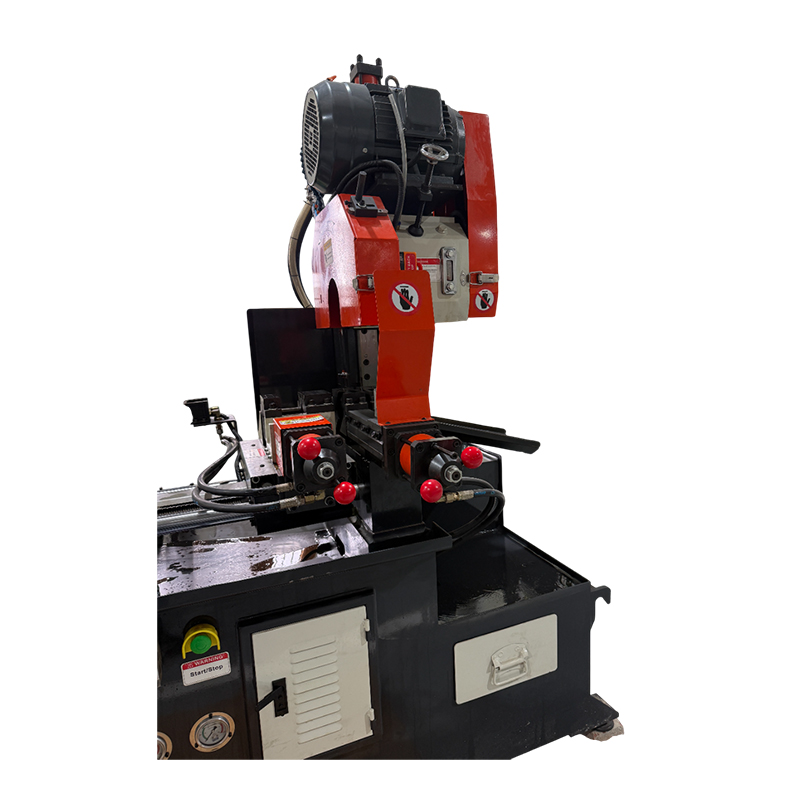

Fully Servo Automatic

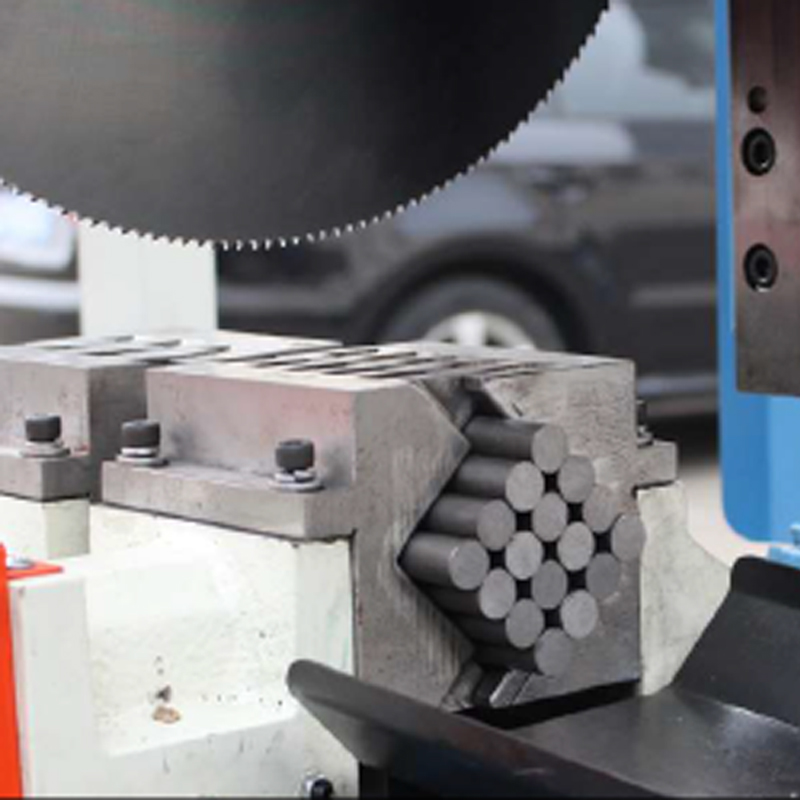

HMI controls, Universal bundle clamp, Chip brush cleaning sync.with cutter, Hydraulic oil heat exchanger, Floating material feeding vise, Material feeding servo control, Automatic lubrication system, Special design rigid gear box, Clutch brake mechanism to eliminate backlash, 3rd vice feature-Optional suitable for pipe length more then 150mm ensures end-piece length 20mm.
Accessories
- 4 nos roller stand
- 2 nos saw blades
- Tool kit
Technical Parameter
| # | Machine Model | NSA 425CNC |
|---|---|---|
| 1 | Effective Feeding Distance for Single Time | 1000/1500/2000mm |
| 2 | Suitable Material | Stainless Steel/Carbon Steel |
| 3 | Saw Blade Range | 285-450mm | 4 | Max. Pipe Diameter | 125 * 8mm |
| 5 | Motor Power | 4/6 Pole - 3/4kw |
| 6 | Main Shaft Rotating Speed | 28/47/77/117RPM |
| 7 | Machine weight | 1200 KG |
| 8 | Machine Dimension (LxWxH) | 3050x1220x2080 mm |

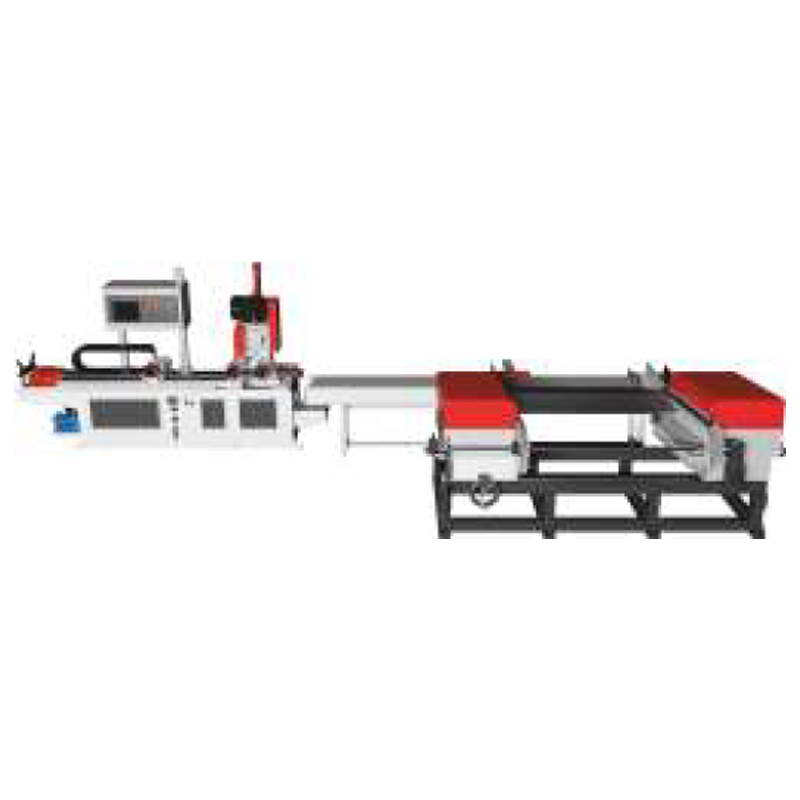

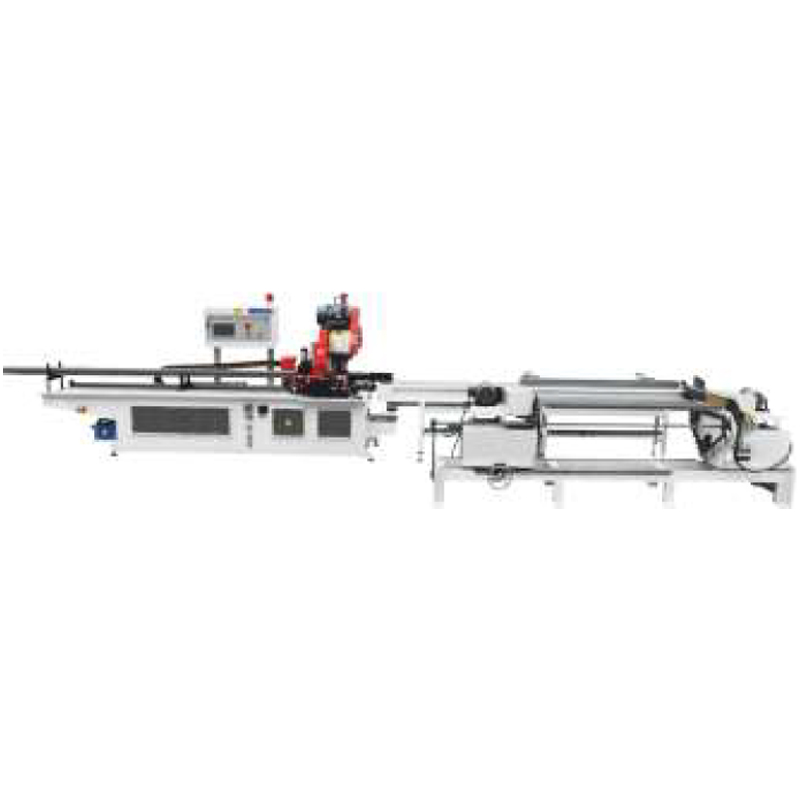

Production Line

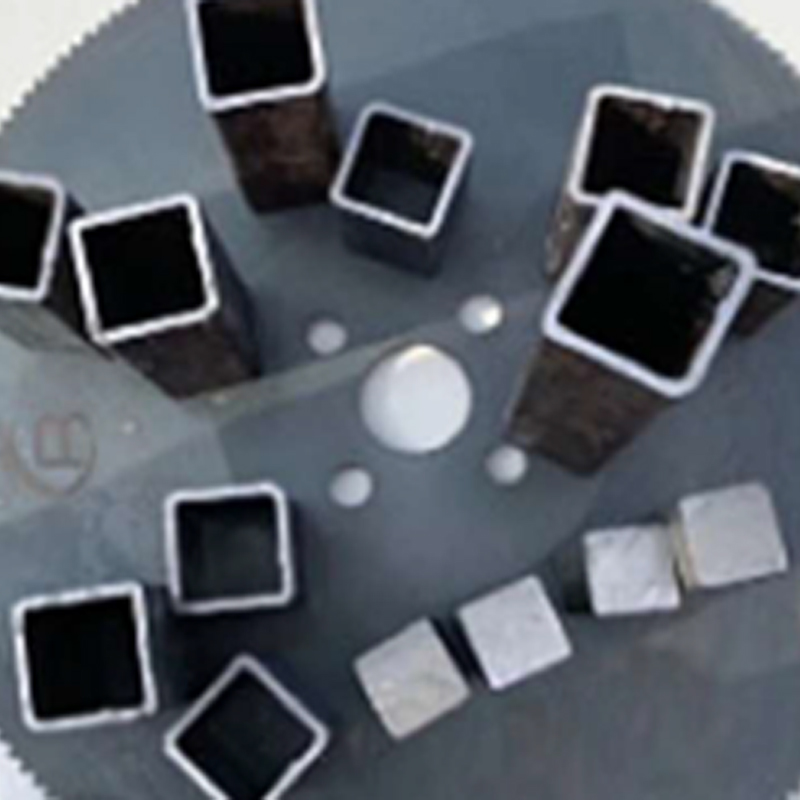

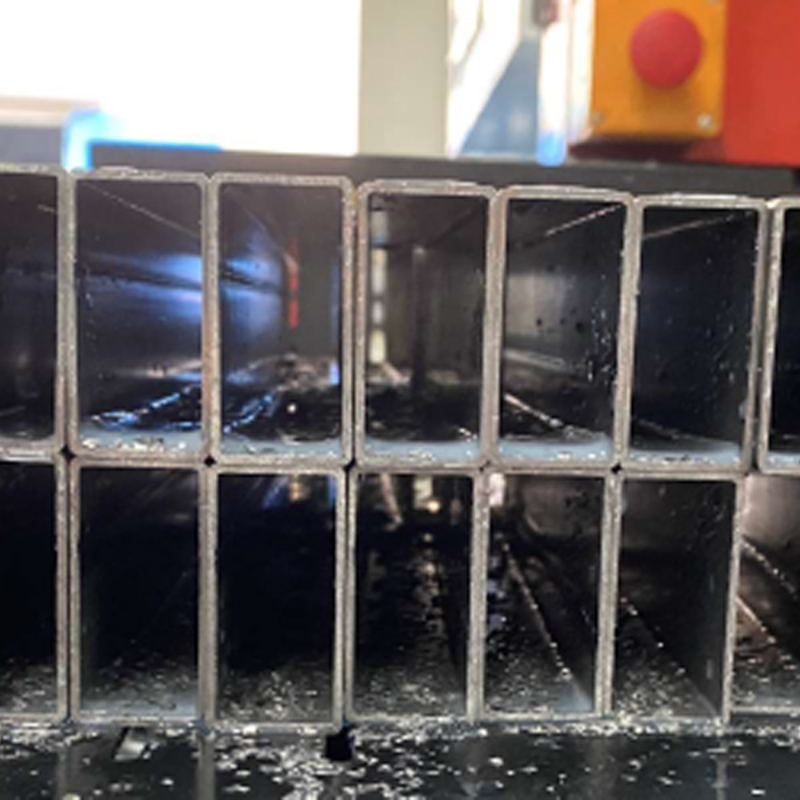

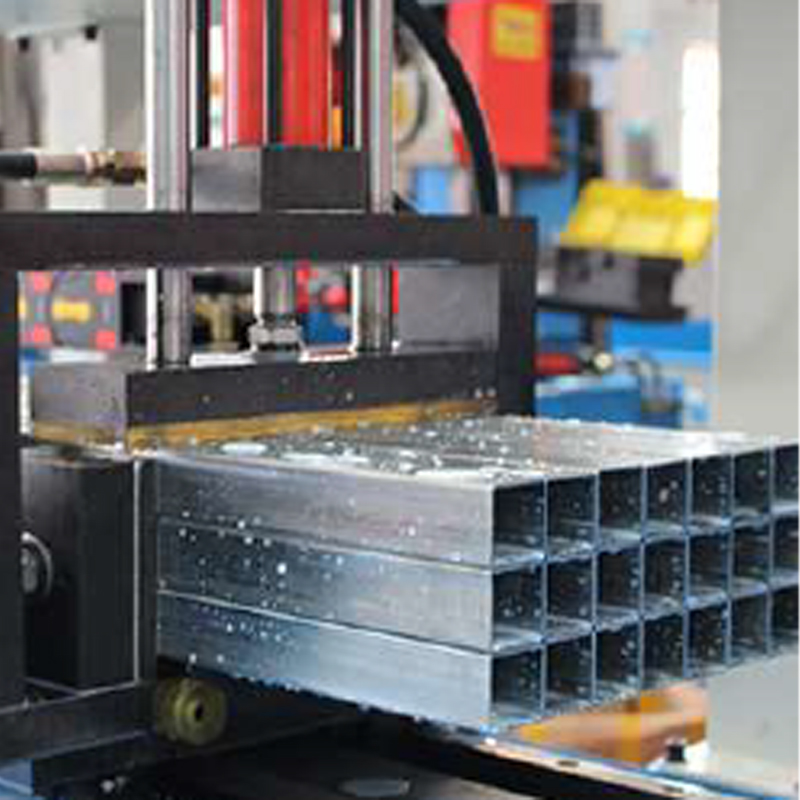

Cutting Samples
