Standard Series

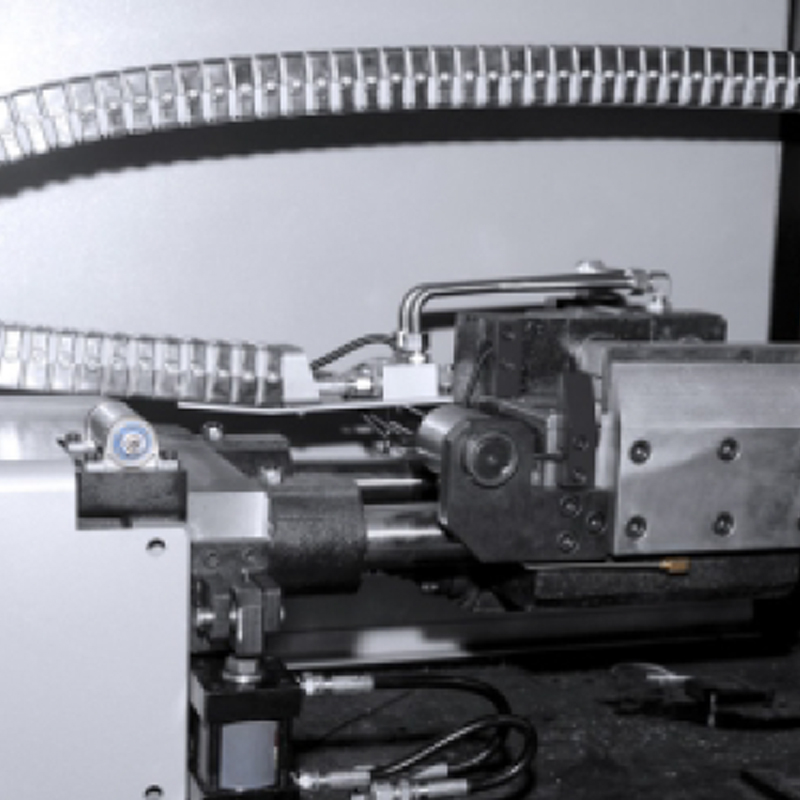

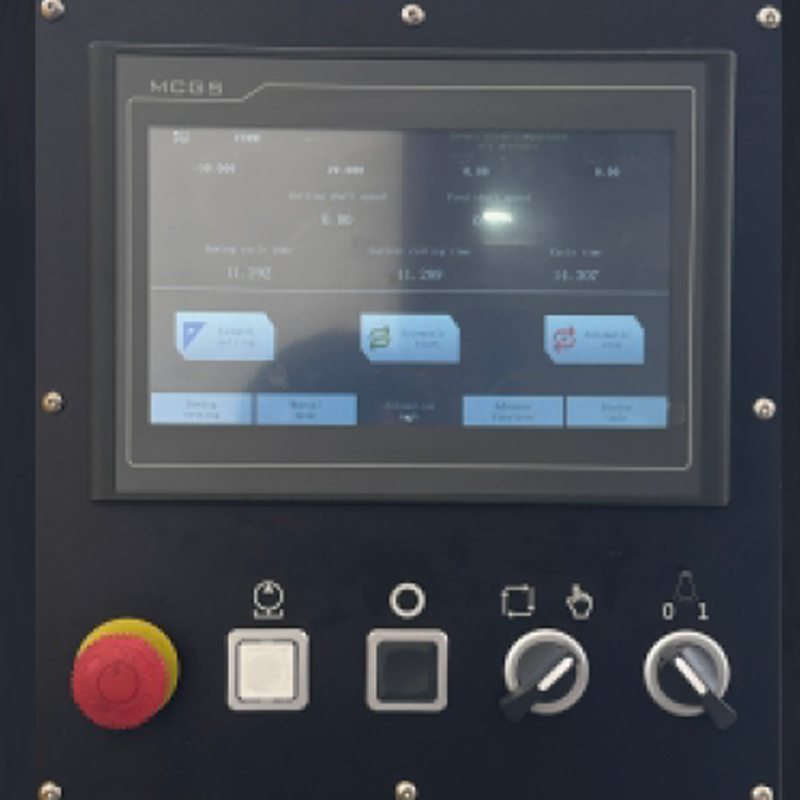

User friendly control panel, Latest horizonal feeding mechanism, Special gear box design, Lift & carry material, feeding mechanism, AI SAW MASTER, Smoke collectror, Automatic lubrication system, Chip conveyor, LED work light, Hydraulic oil heat exchanger.
Accessories
- Chip carriage trolley
- Automatic material loader
- Automatic discharge conveyor (optional)
- 2 nos saw blades
- Tool kit
Technical Parameter
| Model | Capacity (mm) | Capacity 2 (mm) | Blade Size (mm) | Blade Speed (r/min) | Blade Drive Motor (kW) | Hyd. Pump Motor (kW) | Feed Motor (kW) | Hyd. Oil (L) | Cutting Oil (L) | Machine Size (W x L x H) (mm) | Machine Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| C-80X | 10 – 80 | 10 – 60 | 4315 × 2.00 | 30 – 160 | 11 | 2.2 | 1.3 | 60 | 2 | 2300 × 2280 × 2020 | 2000 |
| C-100X | 20 – 100 | 20 – 70 | 360 × 2.25 | 30 – 160 | 15 | 2.2 | 1.8 | 60 | 2 | 2300 × 2280 × 2020 | 2200 |
| C-120X | 35 – 120 | 35 – 75 | 380 × 2.25 | 30 – 160 | 15 | 2.2 | 1.8 | 60 | 2 | 2300 × 2280 × 2020 | 3200 |
Cutting Samples
