Automatic Bandsaw
Automatic Bandsaw
MITRE CUTTING BANDSAWS: We offer metal bandsawing machines with single and double side MITRE semiautomatic & fully automatic CNC machines for fabrication applications with customized solutions.
STRAIGHT CUTTING BANDSAWS: We offer complete range in straight cutting bandsaw machines from manual, semi-automatic and fully automatic CNC for high performance and high productivity.

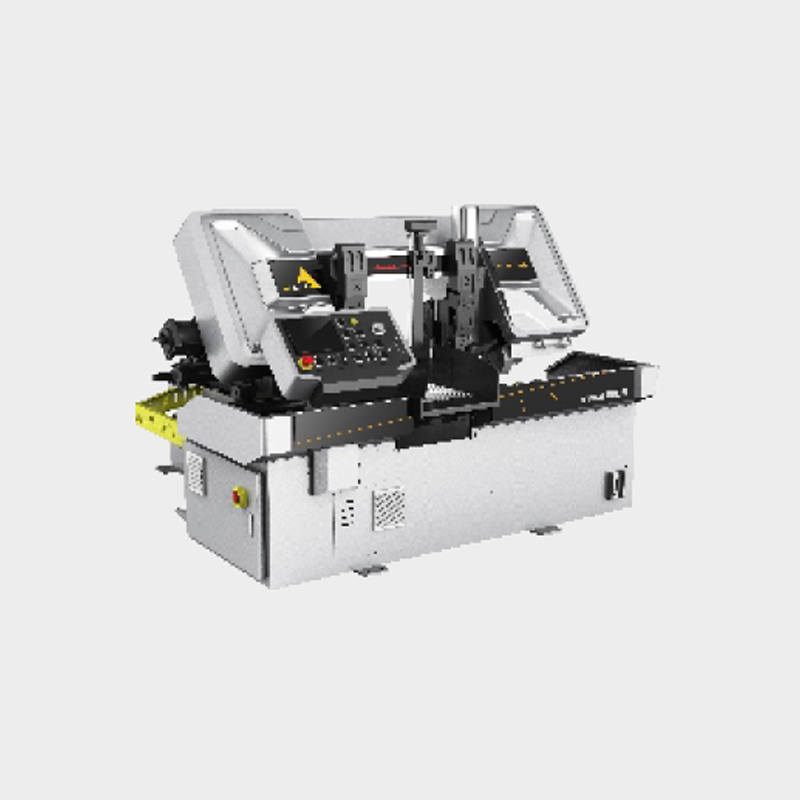

HS 320 / 420 / 530 DCA+
Specifications
| Model | H-320 PRO+ | H-420 PRO+ | H-530 PRO+ |
|---|---|---|---|
| Capacity (● mm) | 320 | 420 | 530 |
| Capacity (■ mm) | 320 × 320 | 420 × 420 | 530 × 530 |
| Saw blade size (mm) | 4115 × 34 × 1.1 | 5150 × 41 × 1.3 | 6300 × 54 × 1.3 |
| Saw blade speed (m/min) | 10–80 | 10–80 | 20–80 |
| Saw blade motor (kW) | 5 | 7.5 | 7.5 |
| Hydraulic motor (kW) | 0.75 | 1.5 | 1.5 |
| Coolant pump motor (kW) | 0.135 | 0.135 | 0.135 |
| Hydraulic oil (L) | 60 | 70 | 70 |
| Cutting oil (L) | 90 | 120 | 140 |

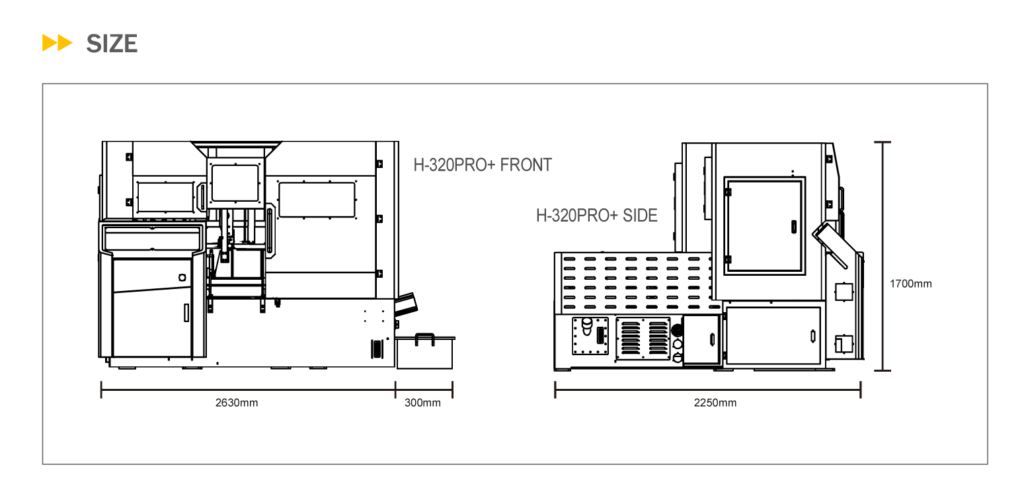

| Machine size (mm) | 2250 × 2300 × 1550 | 2250 × 2630 × 1650 | 2250 × 3100 × 1950 |
| Machine weight (kg) | ≈ 2000 | ≈ 2800 | ≈ 3700 |
| Feeding Speed | EHA precision hydraulic control | ||
| Single Feeding Distance (mm) | 500 | 500 | 500 |
| Table height (mm) | 830 | 860 | 860 |
Configuration Table
Legend: Standard: √ Optional: ○ Not applicable: ✕
| Model | HS 320 DCA | HS 420 DCA | HS 530 DCA |
|---|---|---|---|
| Main drive : Gear box | √ | √ | √ |
| Variable frequency motor | √ | √ | √ |
| Invertor | √ | √ | √ |
| Power chip brush | √ | √ | √ |
| HMI + Button | √ | √ | √ |
| Double hydraulic valve down feed control | ✕ | ✕ | ✕ |
| Top clamping | ○ | ○ | ○ |
| Hydraulic blade tension | ○ | √ | √ |
| AI Sawing mode | √ | √ | √ |
| Split front clamping vice | ○ | ○ | ○ |
| Automatic guide arm adjustment | √ | √ | √ |
| Automatic chip conveyor | √ | √ | √ |
| Free saw blade | √ | √ | √ |
| Leveling pads | √ | √ | √ |
| Chips trolly | ○ | ○ | ○ |
| Chips Basket | ○ | ○ | ○ |
| 2m non-power roller table | ○ | ○ | ○ |
| 0.5m non-power roller table | ○ | ○ | ○ |
