Features

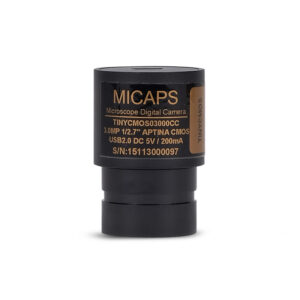

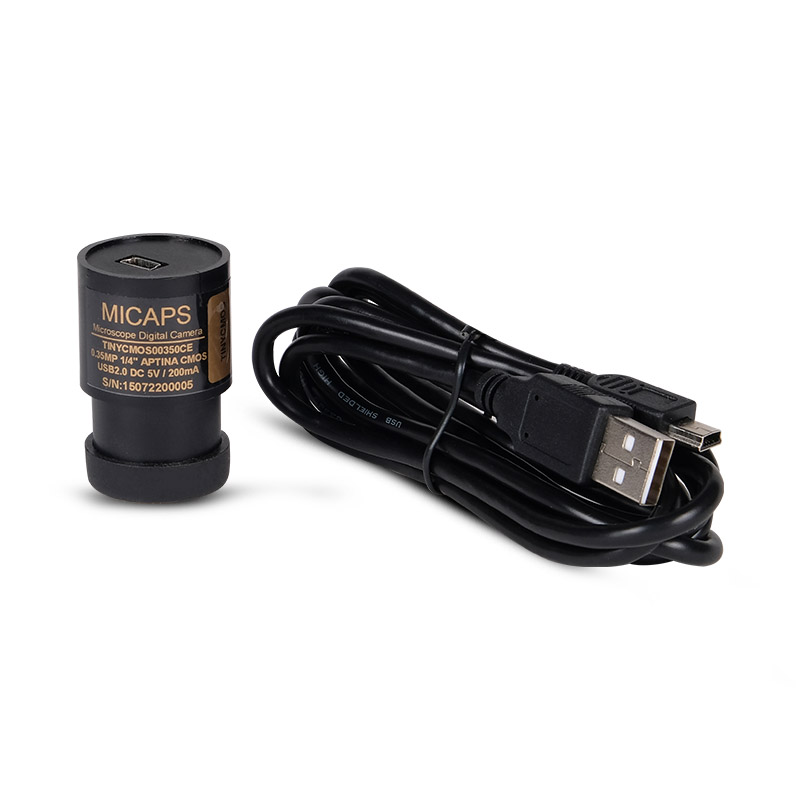

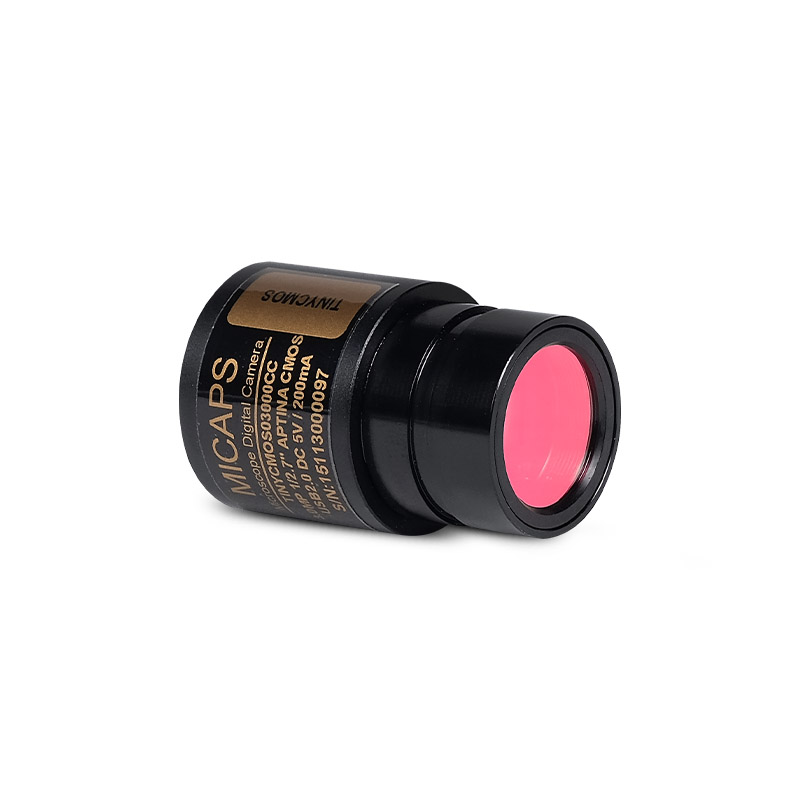

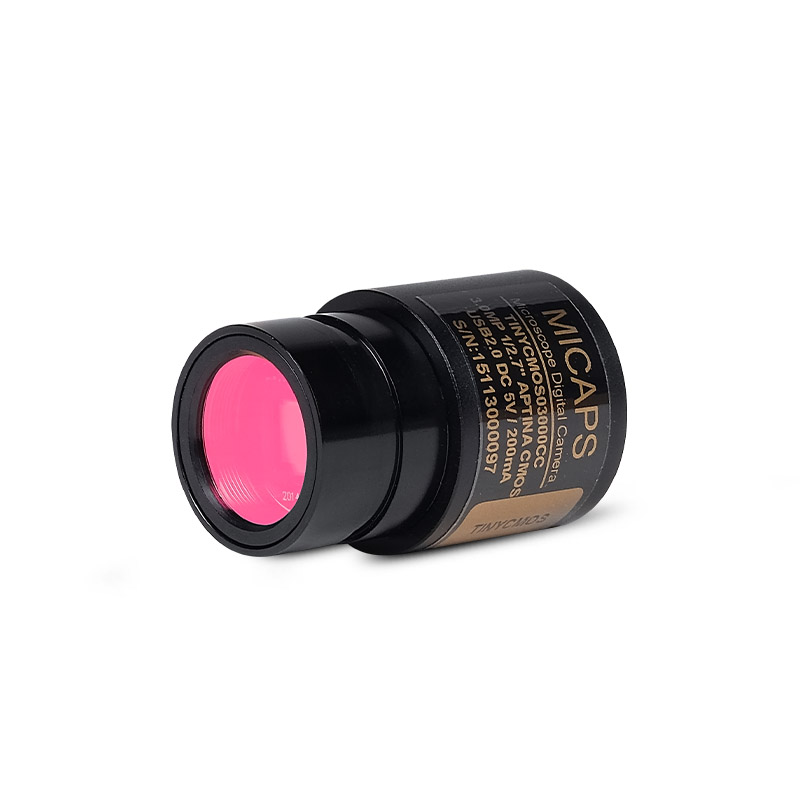

- Microscope eyepiece camera with 23.2 diameter and compact size
- Easy to extend to C Mount camera with high quality lens (optional)

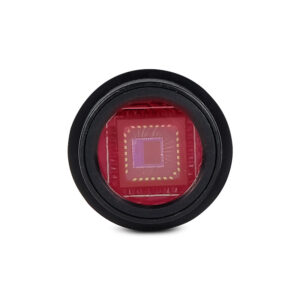

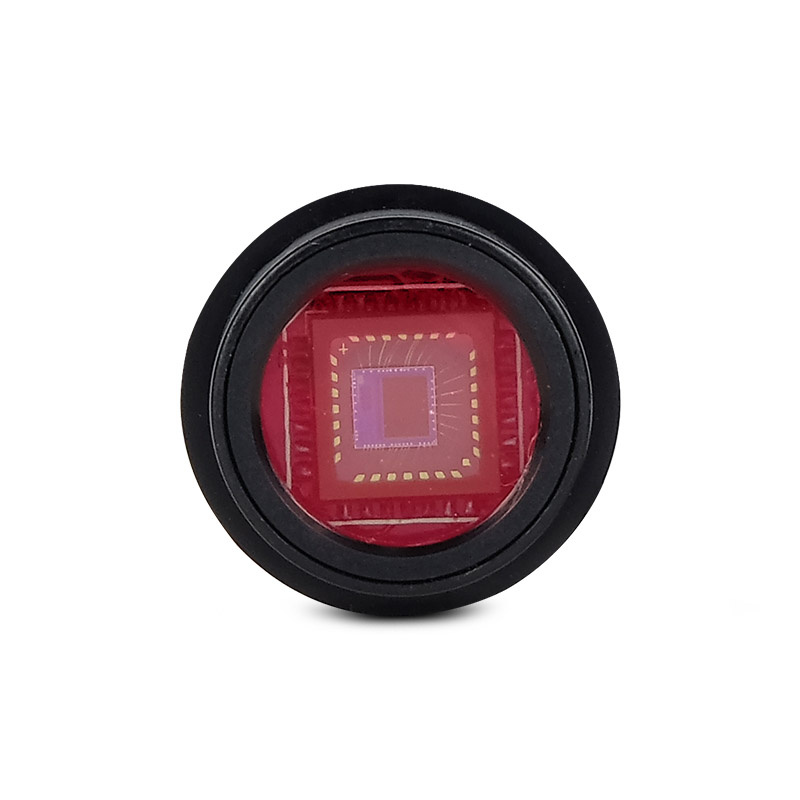

- High-quality camera with Aptina and Sony CMOS sensor

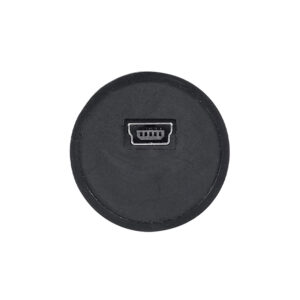

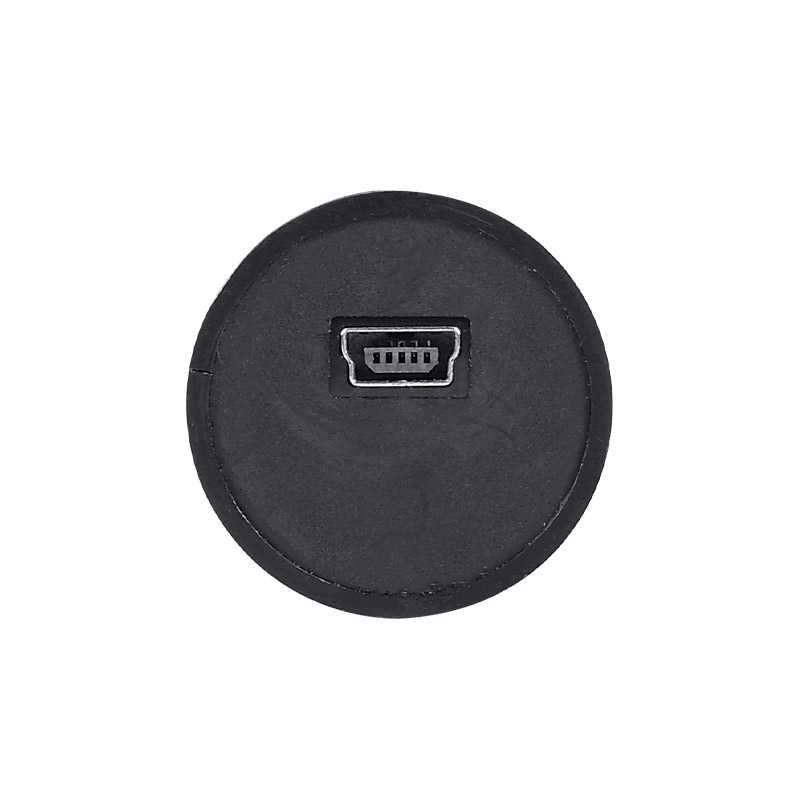

- High-speed USB2.0 interface and high frame rate video display keep the screen smooth without interruption
- Auto white balance and auto-exposure; Brightness, contrast, chroma, and saturation can be adjusted
- With advanced video & image processing application MICAPS MicroView
- Providing Windows/Linux/Mac OS multiple platforms SDK
Applications
- Scientific research, education (teaching, demonstration and academic exchanges)
- Digital laboratory, medical research
- Industrial visual (PCB examination, IC quality control)
- Medical treatment (pathological observation)
- Food (microbial colony observation and counting)
- Aerospace, military (high sophisticated weapons)
| Order Code | Sensor & Size(mm) | Pixel(μm) | G Sensitivity Dark Signal | FPS/Resolution | Binning | Exposure |
|---|---|---|---|---|---|---|
| TINYCMOS12000CA | 12M/IMX577(C) 1/2.3″ (5.954×7.1) | 1.55×1.55 | 250LSB 70dB 43dB | 20@3840×3040 20@1920×1520 20@960×760 | 1×1 1×1 1×1 |
0.1–2000 ms |
| TINYCMOS00921CA | 0.92M/OV9732(C) 1/4″ (3.888×2.208) | 3×3 | 2.066V/lux-sec 72dB@8× gain 39dB | 30@1280×720 30@640×360 | 1×1 1×1 |
0.1ms–650ms |
| TINYCMOS08300CA | 8.3M/IMX274(C) 1/2.5″ (6.22×5.0) | 1.62×1.62 | 236mV 70dB 43dB | 30@3840×2160 30@1920×1080 30@1280×720 30@960×540 | 1×1 1×1 1×1 |
0.1–2000 ms |
| TINYCMOS05100CA | 5.1M/AR0521(C) 1/2.5″ (5.70×4.28) | 2.2×2.2 | 18.8ke-/lus 73dB 40dB | 30@2592×1944 30@1280×960 30@640×480 | 1×1 1×1 1×1 |
0.1–1000 ms |
| TINYCMOS05100CB | 5.1M/IMX335(C) 1/2.8″ (5.18×3.89) | 2.0×2.0 | 505mV 70dB 43dB | 26@2592×1944 26@1280×960 26@640×480 | 1×1 1×1 1×1 |
0.1–2000 ms |
| TINYCMOS03100CA | 3.1M/Aptina(C) 1/2.5″ (5.73×4.3) | 2.8×2.8 | 18.8ke-/lus 73dB 40dB | 30@2048×1536 30@1024×768 | 1×1 1×1 |
0.1–1000 ms |
| TINYCMOS02100CA | 2.1M/IMX307(C) 1/2.8″ (5.73×4.3) | 2.9×2.9 | 1300mV 73dB 43dB | 38@1920×1080 38@960×540 | 1×1 1×1 |
0.1–2000 ms |
| TINYCMOS08300CB | 8.3M/IMX415(C) 1/2.8″ (5.57×3.13) | 1.45×1.45 | 300mV 70dB 44dB | 30@3840×2160 30@1920×1080 30@1280×720 30@960×540 | 1×1 1×1 1×1 1×1 |
0.1–2000 ms |
| TINYCMOS1300CA | 1.3M/Aptina(C) 1/3″ (4.603×3.70) | 3.6×3.6 | NA | 7.5@1280×1024 12.5@1024×768 12.5@800×600 | N/A | Auto |
| TINYCMOS02100CB | 2.1M/SC2332(C) 1/3″ (5.18×2.92) | 2.7×2.7 | 4510mV/lux-s 74dB 38.5dB | 30@1920×1080 30@960×540 | 1×1 1×1 |
0.1–2000 ms |
| TINYCMOS01301CA | 1.3M/Special(C) 1/3″ (5.18×2.92) | 3.41×3.41 | 4510mV/lux-s 74dB 38.5dB | 30@1520×856 30@760×428 | 1×1 1×1 |
0.1–2000 ms |
| TINYCMOS05000CA | 5.0M/Aptina(C) 1/2.5″ (5.70×4.28) | 2.2×2.2 | NA | 2@2592×1944 3@2048×1536 5@1600×1200 7.5@1280×1024 | N/A | Auto |
| TINYCMOS05000CB | 5.0M/SC5033(C) 1/2.7″ (5.18×3.89) | 2.0×2.0 | 2.0V/lux-sec 64dB 35dB | 20@2592×1944 20@2048×1536 20@1600×1200 30@800×600 | N/A | Auto |
| TINYCMOS03000CA | 3.0M/Aptina(C) 1/2.7″ (4.51×3.38) | 2.2×2.2 | NA | 3@2048×1536 5@1600×1200 7.5@1280×1024 | N/A | Auto |
| TINYCMOS03000CB | 3.0M/SmartSens(C) 1/3″ (4.10×3.07) | 2.0×2.0 | 2.0V/lux-sec 64dB 35dB | 20@2048×1536 20@1600×1200 30@800×600 | N/A | Auto |
| TINYCMOS02000CA | 2.0M/Aptina(C) 1/3.2″ (4.48×3.36) | 2.8×2.8 | NA | 5@1600×1200 7.5@1280×1024 20@800×600 22@640×480 | N/A | Auto |
| TINYCMOS02000CB | 2.0M/OV2710(C) 1/2.7″(5.76×3.24) | 3×3 | 3.3V/lux-sec 69dB 39dB | 25@1920×1080 30@1280×1024 30@1280×720 | N/A | Auto |
| TINYCMOS00920CA | 0.92M/BG0703(C) 1/2.7″ (5.80×3.28) | 4.5×4.5 | 5.8V/lux-sec 65dB 43dB | 25@1280×720 25@640×480 | N/A | Auto |
| TINYCMOS00350CA | 0.35M/Aptina(C) 1/4″ (3.58×2.69) | 5.6×5.6 | NA | 30@640×480 | N/A | Auto |
| Software Environment Under Lan/wan/usb Video Output | |
|---|---|
| Spectral Range | 380–650nm (with IR-cut Filter) |
| White Balance | Auto/ROI/Manual White Balance |
| Color Technique | Super Fine Color Engine |
| Capture/Control SDK | Windows/Linux/macOS/Android Multiple Platform SDK (Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc.) |
| Recording System | Still Picture and Movie |
| Data Format | MJPEG |
| Cooling System* | Natural |
| Operating System | Microsoft® Windows® XP / Vista / 7 / 8 / 8.1 /10 (32 & 64 bit), OSx (Mac OS X), LINUX |
| PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher, Memory: 4GB or More, Ethernet Port: RJ45 Ethernet Port, Display: 19” or Larger, CD-ROM |
| Operating Environment | |
|---|---|
| Operating Temperature (in Centidegree) | -10° ~ 50° |
| Storage Temperature (in Centidegree) | -20° ~ 60° |
| Operating Humidity | 30 ~ 80%RH |
| Storage Humidity | 10 ~ 60%RH |
| Power Supply | DC 5V over PC USB port |
