Features
- TE-cooling with controllable electric fan
- Rolling Shutter or Global Shutter
- IR-CUT/AR coated windows
- Up to 5-minutes long time exposure
- Support capture image with video /trigger mode
- Support external IO synchronization trigger mode
- Super-Fine color engine with perfect color reproduction capability
- With advanced video & image processing application MicroView/MicroLite
Applications
- Scientific research, education (teaching, demonstration and academic exchanges)
- Digital laboratory, medical research
- Industrial visual (PCB examination, IC quality control)
- Medical treatment (pathological observation)
- Food (microbial colony observation and counting)
- Aerospace, military (high sophisticated weapons)
| Order Code | Sensor & Size(mm) | Pixel(μm) | G Sensitivity Dark Signal | FPS/Resolution | Binning | Exposure |
|---|---|---|---|---|---|---|
| SVTEC3CMOS0390MA | 0.39M/IMX287(M) 1/2.9″(4.97×3.73) |
6.9 x 6.9 | 7320mV with 1/30s 0.76mV with 1/30s |
20fps@720×540 8 Bit / 12 Bit |
1×1 | 6μs~300s |
| SVTEC3CMOS0503MA | 0.5M/IMX426(M) 1/1.7″(7.2×5.58) |
9.0 x 9.0 | 8100mV with 1/30s 0.3mV with 1/30s |
20fps@800×620 8 Bit / 12 Bit |
1×1 | 6μs~300s |
| SVTEC3CMOS7100CA | 7.0M/IMX428(C,GS) 1.1″(14.4×9.9) |
4.5 x 4.5 | 2058mV with 1/30s 0.15mV with 1/30s |
51.3fps@3200×2200 133.6fps@1584×1100 8 Bit / 12 Bit |
1×1 | 6μs~300s |
| SVTEC3CMOS7100MA | 7.0M/IMX428(M,GS) 1.1″(14.4×9.9) |
4.5 x 4.5 | 3354mV with 1/30s 0.15mV with 1/30s |
51.3fps@3200×2200 133.6fps@1584×1100 8 Bit / 12 Bit |
1×1 | 6μs~300s |
| SVTEC3CMOS1700CA | 1.7M/IMX432(C,GS) 1.1″(14.4×9.9) |
9.0 x 9.0 | 4910mV with 1/30s 0.3mV with 1/30s |
98.6fps@1600×1100 8 Bit / 12 Bit |
1×1 | 6μs~300s |
| SVTEC3CMOS1700MA | 1.7M/IMX432(M,GS) 1.1″(14.4×9.9) |
9.0 x 9.0 | 8100mV with 1/30s 0.3mV with 1/30s |
98.6fps@1600×1100 8 Bit / 12 Bit |
1×1 | 6μs~300s |
| SVTEC3CMOS20000CA | 20M/IMX183(C) 1″(13.056×8.755) |
2.4 x 2.4 | 462mV with 1/30s 0.21mV with 1/30s |
19.0@5440×3648 48.8@2736×1824 59.4@1824×1216 8 Bit / 12 Bit |
1×1 2×2 3×3 |
53μs~300s |
| SVTEC3CMOS20000MA | 20M/IMX183(M) 1″(13.056×8.755) |
2.4 x 2.4 | 776mV with 1/30s 0.21mV with 1/30s |
19.0@5440×3648 48.8@2736×1824 59.4@1824×1216 8 Bit / 12 Bit |
1×1 2×2 3×3 |
53μs~300s |
| SVTEC3CMOS45000MA | 45M/IMX492(M) 4/3″(19.11×13.0) |
2.315 x 2.315 | 351mV with 1/30s 0.12mV with 1/30s |
8.1@8176×5616 30.0@4080×2808 8.1@7408×5556 3.0@3696×2778 10.4@6192×3200 34.7@4096×1600 62.5@2048×1080 86.5@1360×720 8 Bit / 12 Bit |
1×1(3:2) 2×2(3:2) 1×1(4:3) 2×2(4:3) 1×1(17:9) 2×2(17:9) 3×3(17:9) 4×4(17:9) |
0.1ms~300s |
| SVTEC3CMOS1700CA-G | 1.7M/IMX432(C,GS) 1.1″(14.4×9.9) |
9.0 x 9.0 | 4910mv with 1/30s 0.3mv with 1/30s |
66fps@1600×1100 8 Bit / 12 Bit |
1×1 | 6μs~300s |
| SVTEC3CMOS1700MA-G | 1.7M/IMX432(M,GS) 1.1″(14.4×9.9) |
9.0 x 9.0 | 8100mv with 1/30s 0.3mv with 1/30s |
66fps@1600×1100 8 Bit / 12 Bit |
1×1 | 6μs~300s |
| SVTEC3CMOS7100CA-G | 7.0M/IMX428(C,GS) 1.1″(14.4×9.9) |
4.5 x 4.5 | 2058mv with 1/30s 0.15mv with 1/30s |
16.4fps@3200×2200 66fps@1600×1100 8 Bit / 12 Bit |
1×1 | 6μs~300s |
| SVTEC3CMOS7100MA-G | 7.0M/IMX428(M,GS) 1.1″(14.4×9.9) |
4.5 x 4.5 | 3354mv with 1/30s 0.15mv with 1/30s |
16.4fps@3200×2200 66fps@1600×1100 8 Bit / 12 Bit |
1×1 | 6μs~300s |
| SVTEC3CMOS20000CA-G | 20M/IMX183(C,RS) 1″(13.056×8.755) |
2.4 x 2.4 | 462mv with 1/30s 0.21mv with 1/30s |
4.5@5440×3648 18.5@2736×1824 41.7@1824×1216 8 Bit / 12 Bit |
1×1 2×2 3×3 |
53μs~300s |
| SVTEC3CMOS20000MA-G | 20M/IMX183(M,RS) 1″(13.056×8.755) |
2.4 x 2.4 | 776mv with 1/30s 0.21mv with 1/30s |
4.5@5440×3648 18.5@2736×1824 41.7@1824×1216 8 Bit / 12 Bit |
1×1 2×2 3×3 |
53μs~300s |
| Operating Environment | |
|---|---|
| Operating Temperature | -10 °C ~ 50 °C |
| Storage Temperature | -20 °C ~ 60 °C |
| Operating Humidity | 30~80%RH |
| Storage Humidity | 10~60%RH |
| Power Supply | External Power Adapter for camera and cooling system, DC12V, 3A |
| Software Environment | |
|---|---|
| Operating System | Support Microsoft Windows XP / Vista / 7 / 8 / 10 (32 & 64 bit) OS X (Mac OS X), Linux |
| PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher |
| Memory: 2GB or More | |
| USB port: USB2.0 High-speed Port | |
| Display: 17″ or Larger | |
| CD-ROM | |
| Other Hardware Configuration | |
|---|---|
| Spectral Range | 380–650nm (with IR-filter), for Monochromatic Camera, AR is used |
| White Balance | ROI White Balance / Manual Temp-Tint Adjustment |
| Color Rendering Technique | Super Fine Color Engine |
| Capture/Control SDK | Windows / Linux / macOS / Android Multiple Platform SDK (Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc) |
| Recording System | Still Picture and Movie |
| Cooling System* | Two-stage TE-cooling System -42 °C below Camera Body Temperature |

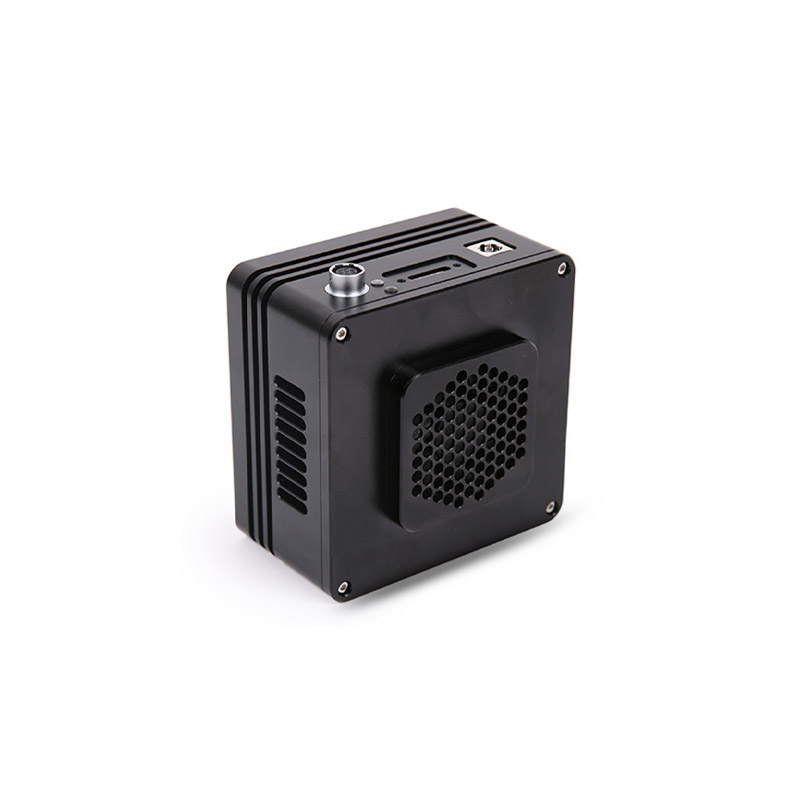

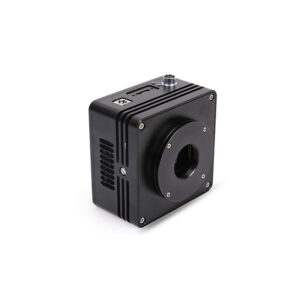

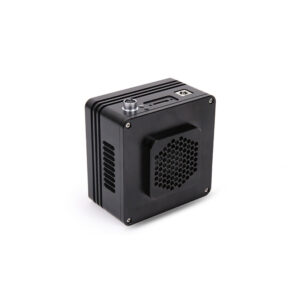

| Dimension of SVTEC3CMOS Series Camera | |
|---|---|
| The SVTEC3CMOS body, made from CNC aluminium alloy, ensures a heavy-duty, workhorse solution. The camera is designed with a high-quality IR-CUT to protect the camera sensor. No moving parts included. This design ensures a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions. | |
| Model Name | Download PDF |
| SVTEC3CMOS0390MA |  Download |
| SVTEC3CMOS0503MA | Download |
| SVTEC3CMOS7100CA | Download |
| SVTEC3CMOS7100MA | Download |
| SVTEC3CMOS1700CA | Download |
| SVTEC3CMOS1700MA | Download |
| SVTEC3CMOS20000CA | Download |
| SVTEC3CMOS20000MA | Download |
| SVTEC3CMOS45000MA | Download |
| SVTEC3CMOS1700CA-G | Download |
| SVTEC3CMOS1700MA-G | Download |
| SVTEC3CMOS7100CA-G | Download |
| SVTEC3CMOS7100MA-G | Download |
| SVTEC3CMOS20000CA-G | Download |
| SVTEC3CMOS20000MA-G | Download |
