Applications
- Scientific research, education (teaching, demonstration and academic exchanges)
- Digital laboratory, medical research
- Industrial visual (PCB examination, IC quality control)
- Medical treatment (pathological observation)
- Food (microbial colony observation and counting)
- Aerospace, military (high sophisticated weapons)
| Model No. | Sensor & Size(mm) | Pixel(μm) | G Sensitivity Dark Signal | FPS/Resolution | Binning | Exposure |
|---|---|---|---|---|---|---|
| SV3S with 33mmx33mmx33mm housing | ||||||
| SV3SCMOS500CA | 0.5M/IMX433LQJ(C,GS) 1/1.7” (7.31×5.58) |
9.0×9.0 | 4910mv with 1/30s 0.3mv with 1/30s |
166.5fps@812×620 | 1×1 | 6us~15s |
| SV3SCMOS1500CA | 1.5M/IMX273LQR(C,GS) 1/2.9” (4.97×3.73) |
3.45×3.45 | 1146mv with 1/30s 0.15mv with 1/30s |
227.2fps@1440×1080 382.7fps@720×540 | 1×1 1×1 |
15us~15s |
| SV3SCMOS2300CA | 2.3M/IMX174LQJ(C,GS) 1/1.2” (11.25×7.03) |
5.86×5.86 | 1016mv with 1/30s 0.15mv with 1/30s |
164.5fps@1920×1200 | 1×1 | 15us~15s |
| SV3SCMOS2300CB | 2.3M/IMX249LQJ(C,GS) 1/1.2” (11.25×7.03) |
5.86×5.86 | 1016mv with 1/30s 0.15mv with 1/30s |
30fps@1920×1200 | 1×1 | 42us~15s |
| SV3SCMOS3100CA | 3.1M/IMX252LQR(C,GS) 1/1.8” (7.07×5.30) |
3.45×3.45 | 1146mv with 1/30s 0.15mv with 1/30s |
115fps@2048×1536 230.3fps@1024×768 | 1×1 1×1 |
15us~15s |

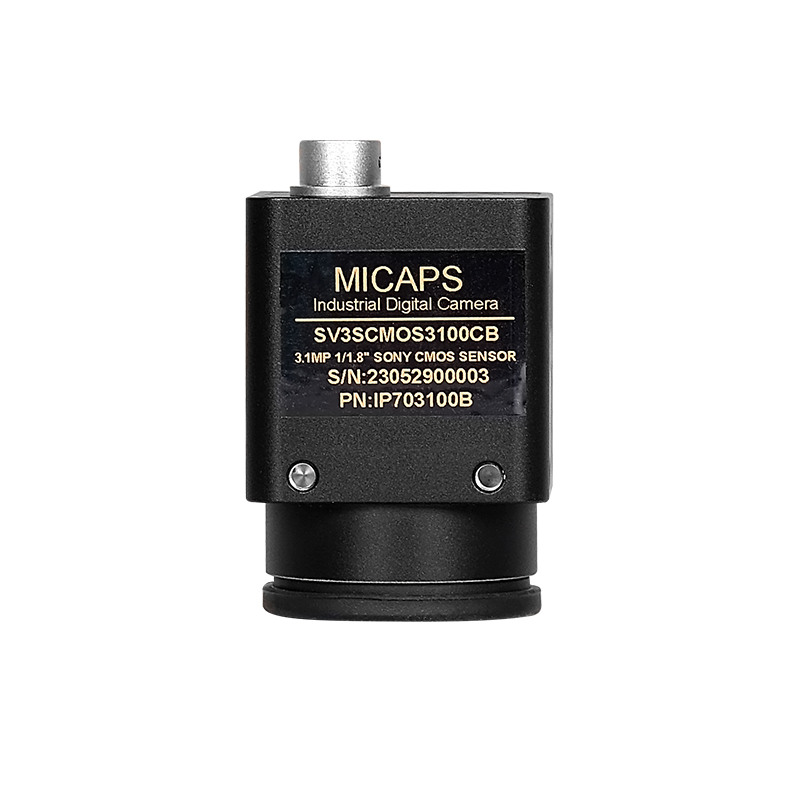

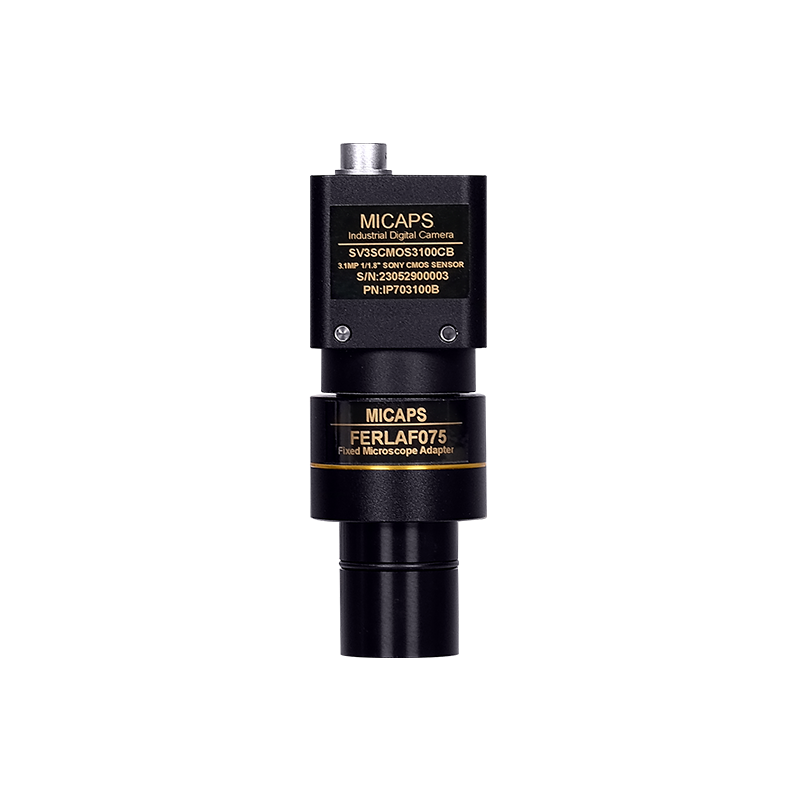

| SV3SCMOS3100CB | 3.1M/IMX265LQR(C,GS) 1/1.8” (7.07×5.30) |
3.45×3.45 | 1146mv with 1/30s 0.15mv with 1/30s |
55.4fps@2048×1536 115.1fps@1024×768 |
1×1 1×1 |
15us~15s |
| SV3SCMOS5000CA | 5.0M/IMX250LQR(C,GS) 2/3” (8.45×7.07) |
3.45×3.45 | 1146mv with 1/30s 0.15mv with 1/30s |
71.2fps@2448×2048 175.2fps@1224×1024 |
1×1 1×1 |
15us~15s |
| SV3SCMOS5000CB | 5.0M/IMX264LQR(C,GS) 2/3” (8.45×7.07) |
3.45×3.45 | 1146mv with 1/30s 0.15mv with 1/30s |
35.6fps@2448×1536 87.6fps@1224×1024 |
1×1 1×1 |
15us~15s |
| SV3SCMOS6300CA | 6.3M/IMX178LQJ(M, RS) 1/1.8” (7.73×4.92) |
2.4×2.4 | 425mv with 1/30s 0.15mv with 1/30s |
58.0fps@3072×2048 59.5fps@1536×1024 |
1×1 2×2 |
17us~15s |
| SV3SCMOS12000CA | 12M/IMX226CQJ(C), RS) 1/1.7” (7.25×5.64) |
1.85×1.85 | 3637mv with 1/30s 0.15mv with 1/30s |
29.97fps@4064×3046 59.94fps@2048×1080 |
1×1 2×2 |
400us~15s |
| SV3SCMOS12000CB | 12M/IMX676-AACR(C, RS) 1.1” (7.07×7.07) |
2.0×2.0 | 280mv with 1/30s 0.1mv with 1/30s |
27.7fps@3536×3536 65.8fps@1760×1760 |
1×1 2×2 |
13us~15s |
| SV3S01700CA | 1.7M/IMX432LQJ(C,GS) 1.1″ (14.4×9.9) |
9.0×9.0 | 4910mv with 1/30s 0.3mv with 1/30s |
98.6fps@1600×1100 | 1×1 | 6us~15s 38mm |
| SV3S01700CB | 1.7M/IMX425LQJ(C,GS) 1.1″ (14.4×9.9) |
9.0×9.0 | 4910mv with 1/30s 0.3mv with 1/30s | 210fps@1600×1100 | 1×1 | 6us~15s 38mm |
| SV3S02000CA | 2.0M/IMX430LQJ(C), GS) 1/1.7” (7.31×5.58) |
4.5×4.5 | 2058mv with 1/30s 0.15mv with 1/30s |
132fps@1624×1240 | 1×1 | 6us~15s |
| SV3S02800CA | 2.8M/IMX421LQJ(C,GS) 2/3” (8.71×6.59) |
4.5×4.5 | 2058mv with 1/30s 0.15mv with 1/30s |
121fps@1936×1464 425fps@968×732 |
1×1 1×1 |
6us~15s |
| SV3S07100CA | 7.1M/IMX428LQJ(C,GS) 1.1″ (14.4×9.9) |
4.5×4.5 | 2058mv with 1/30s 0.15mv with 1/30s |
51.4fps@3200×2200 133.8fps@1584×1100 |
1×1 1×1 |
6us~15s |
| SV3S12300CA | 12.3M/IMX304LQR-C(C,GS) 1.1″ (14.13×10.35) |
3.45×3.45 | 1146mv with 1/30s 0.15mv with 1/30s |
23.4fps@4096×3000 46.3fps@2048×1500 46.3fps@1024×750 |
1×1 2×2 4×4 |
30us~15s 38mm |
| General Specification | |
|---|---|
| Power supply | Power with USB3.0 |
| Power consumption | <3.0W |
| Temperature | Working temperature -10~50°C, storage temperature 30~70°C |
| Platform and architecture | Win32/WinRT/Linux/macOS/Android; X86/X64/armhf/armel/arm64 |
| Size | 33mm×33mm×33mm, 38mm×38mm×33mm |
| Weight | 227g |
| Lens mount | C-mount |
| Humidity | 20%-80%, no condensation |
| Certification | CE, FCC |
| Model Name | Download PDF |
| SV3SCMOS500CA |  Download |
| SV3SCMOS1500CA | Download |
| SV3SCMOS2300CA | Download |
| SV3SCMOS2300CB | Download |
| SV3SCMOS3100CA | Download |
| SV3SCMOS3100CB | Download |
| SV3SCMOS5000CA | Download |
| SV3SCMOS5000CB | Download |
| SV3SCMOS6300CA | Download |
| SV3SCMOS12000CA | Download |
| SV3SCMOS12000CB | Download |
| SV3S01700CA | Download |
| SV3S01700CB | Download |
| SV3S02000CA | Download |
| SV3S02800CA | Download |
| SV3S07100CA | Download |
| SV3S12300CA | Download |

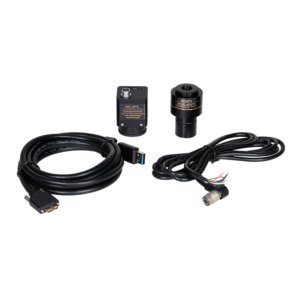

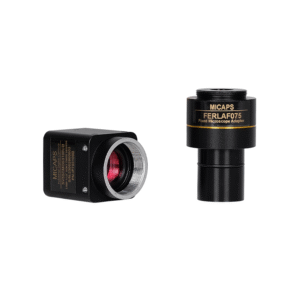

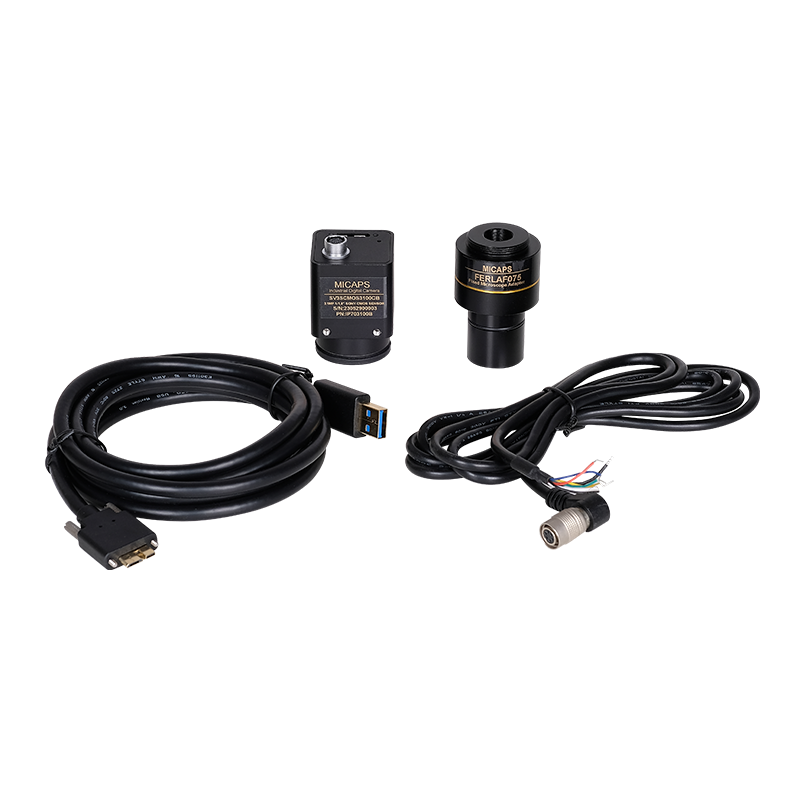

Accessories
