Applications
- Scientific research, education (teaching, demonstration and academic exchanges)
- Digital laboratory, medical research
- Industrial visual (PCB examination, IC quality control)
- Medical treatment (pathological observation)
- Food (microbial colony observation and counting)
- Aerospace, military (high sophisticated weapons)
| Model No. | Sensor & Size(mm) | Pixel(μm) | G Sensitivity Dark Signal | FPS/Resolution | Binning | Exposure |
|---|---|---|---|---|---|---|
| PRO4KUHD8MPCA | 4K/Sony IMX334(C) 1/1.8”(7.68×4.32) | 2.0×2.0 | 505mv with 1/30s 0.13mv with 1/30s |
60@3840×2160(HDMI) 30@3840×2160(NETWORK) 30@3840×2160(USB) |
1×1 | 0.04–2000 |
| PRO4KUHD8MPCB | Sony IMX485(C) 1/1.2”(11.14×6.26) | 2.9×2.9 | 2188mv with 1/30s 0.39mv with 1/30s |
60@3840×2160(HDMI) 30@3840×2160(NETWORK) 30@3840×2160(USB) |
1×1 | 0.04–2000 |
| PRO4KUHD16MPCA | Sony IMX183(C) 1/1.06”(13.06×7.34) | 2.4×2.4 | 461mv with 1/30s 0.21mv with 1/30s |
30@3840×2160(HDMI) 30@3840×2160(NETWORK) 15@5440×3060(USB) |
1×1 | 0.04–2000 |

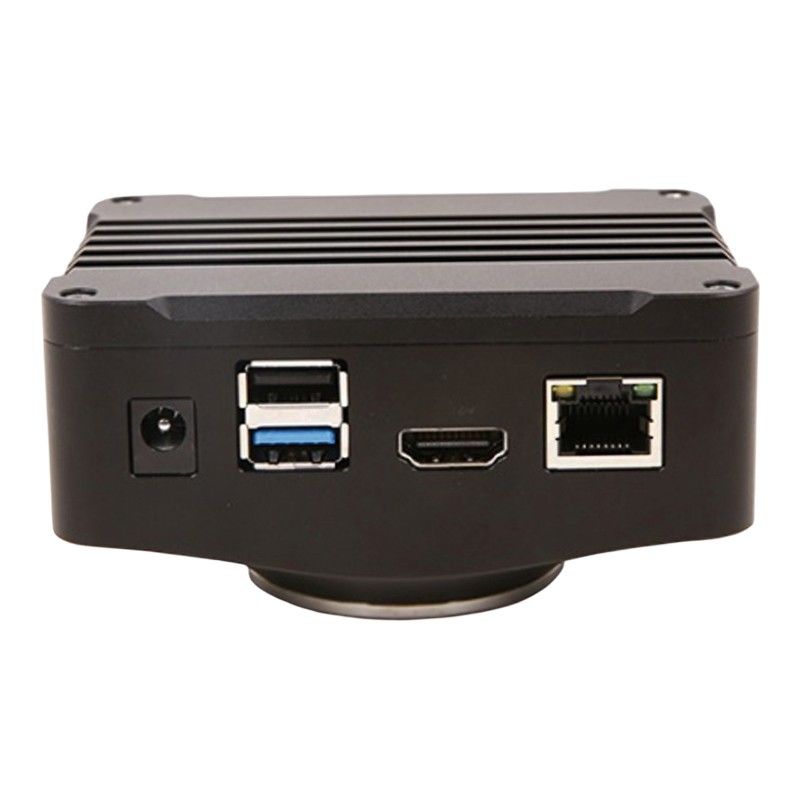

| Interface or Button | Function Description |
|---|---|
| USB Mouse | Connect USB mouse for easy operation with embedded PROView software |
| USB Flash | Connect USB flash drive to save pictures and videos (Host Mode) |
| USB3.0 | Connect 5G WiFi module to transfer video wirelessly in real time (AP/STA, Host Mode) |
| USB | Connect computer with USB connection to transfer video in real time (Device Mode) |
| HDMI | Comply with HDMI2.0 standard. 4K/1080P format video output and automatic switch between 4K and 1080P format according to the connected monitor |
| LAN | LAN port to connect router and switch to transfer video |

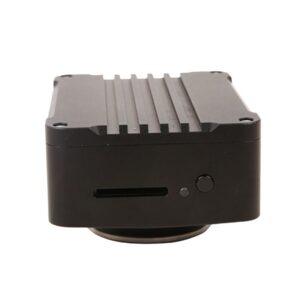

| SD | SD card, comply with SDIO3.0 standard and SD card could be inserted for video and images saving |
| ON/OFF | Power switch |
| LED | LED status indicator |
| DC12V | Power adapter connection (12V/1A) |
| Video Output Interface | Function Description |
|---|---|
| HDMI Interface |
Comply with HDMI2.0 standard 60fps@4K or 60fps@1080P (PRO4KUHD8MPCA, PRO4KUHD8MPCB) 30fps@4K or 30fps@1080P (PRO4KUHD16MPCA) |
| LAN Interface |
30fps@4K resolution, support real-time resolution switching H264 encoded video Bandwidth adjustment in real time DHCP configuration or manual configuration Unicast/multicast configuration |
| WiFi Interface | Connecting 5G WLAN adapter (USB3.0 slot) in AP/STA mode |
| USB 3.0 Slot | Connecting USB Video port of PC for video transfer (Device Mode); MJPEG format video |
| Other Function Description | |
|---|---|
| Other Function | Function Description |
| Video Saving |
Video format: 8M(3840×2160) H264 encoded MP4 file Video saving frame rate: 50–250fps (PRO4KUHD8MPCA, PRO4KUHD8MPCB) (related with SD card and video resolution); 26–30fps (PRO4KUHD16MPCA) (related with SD card and video resolution) |
| Image Capture |
8M (3840×2160, PRO4KUHD8MPCA, PRO4KUHD8MPCB) JPEG/TIFF image in SD card or USB flash drive; 16M (5440×3060, PRO4KUHD16MPCA) JPEG/TIFF image in SD card or USB flash drive |
| Measurement Saving |
Measurement information saved in different layer with image content Measurement information is saved together with image content in burn-in mode |
| ISP |
Exposure (Automatic / Manual Exposure) / Gain, White Balance (Manual / Automatic / ROI Mode), Sharpening, 3D Denoise, Saturation Adjustment, Contrast Adjustment, Brightness Adjustment, Gamma Adjustment Color to Gray, 50Hz/60Hz Anti-flicker Function |
| Image Operation |
Zoom In/Zoom Out (Up to 10x), Mirror/Flip, Freeze, Cross Line, Compare (Comparison between realtime video and images in SD card or USB flash drive), Embedded Files Browser, Video Playback, Measurement Function |
| Embedded RTC (Optional) | To support accurate time on board |
| Restore Factory Settings | Restore camera parameters to its factory status |
| Multiple Language Support | English / Simplified Chinese / Traditional Chinese / Korean / Thai / French / German / Spanish / Japanese / Italian / Russian / Dutch / Portuguese |
| Operating Environment | |
|---|---|
| Parameter | Specification |
| Operating Temperature (in Centidegree) | -10° ~ 50° |
| Storage Temperature (in Centidegree) | -20° ~ 60° |
| Operating Humidity | 30~80%RH |
| Storage Humidity | 10~60%RH |
| Power Supply | DC 12V/1A Adapter |
| Software Environment under LAN/WLAN/USB Video Output | |
|---|---|
| Parameter | Specification |
| White Balance | Auto White Balance |
| Color Technique | Super-Fine Color Engine |
| Capture/Control SDK | Windows/Linux/macOS/Android Multiple Platform SDK (Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc) |
| Recording System | Still Picture or Movie |
| Operating System | Microsoft® Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11(32 & 64 bit) OS, Mac OS X/Linux |
| CPU Requirements | Equal to Intel Core2 2.8GHz or Higher |
| Memory | 4GB or More |
| PC Requirements | Ethernet Port: RJ45 Ethernet Port Display: 19” or Larger CD-ROM |
