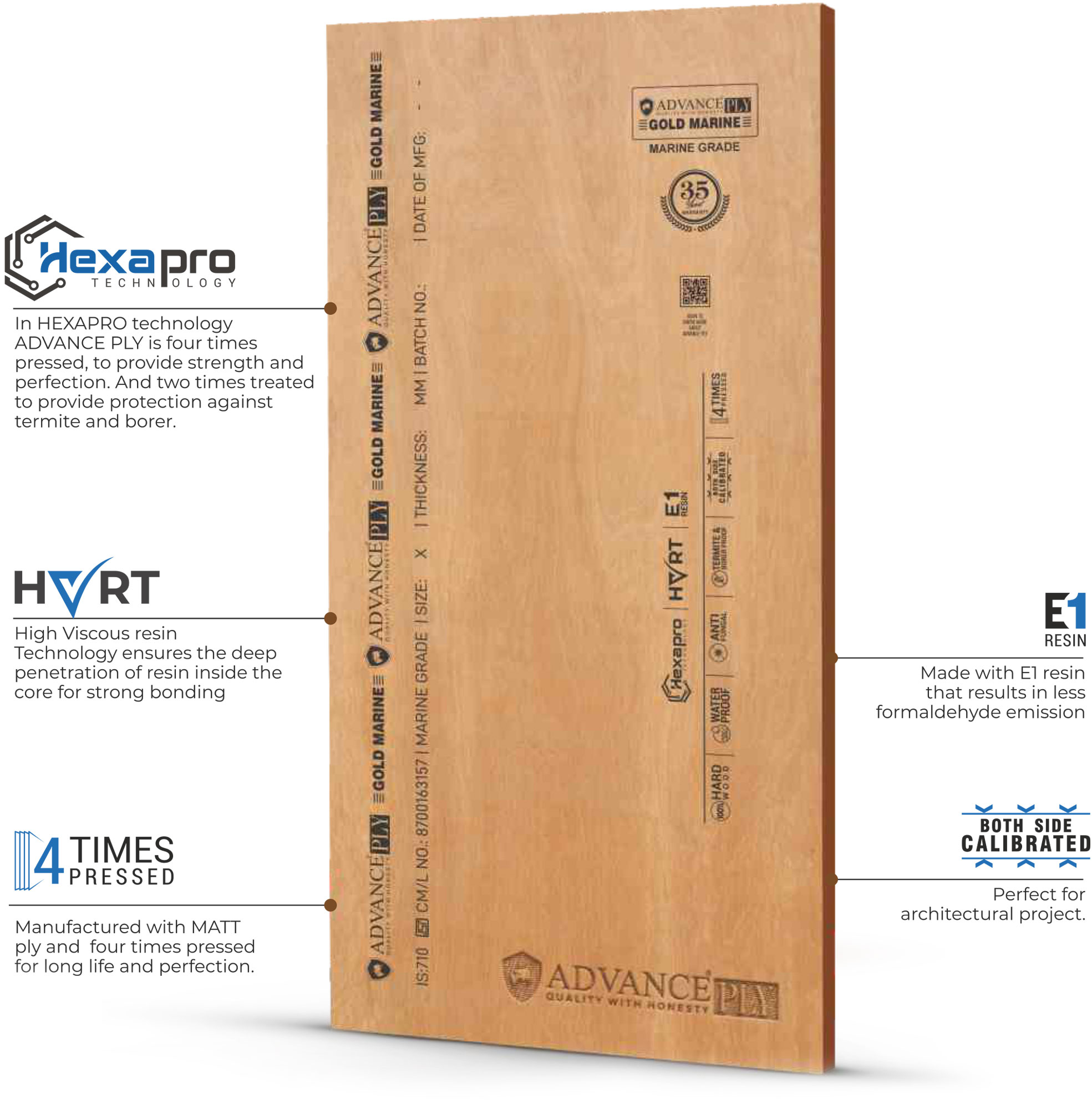

Advance Ply
Gold Marine
- Home
- Advance Ply Gold Marine
MADE WITH E1 GRADE RESIN, BOILING WATER PROOF, MARINE GRADE, IS:710, FULLY HARDWOOD CONSTRUCTION
Technical Specifcation for Marine Grade Plywood
| Sr. No. | Parameters | Standards |
|---|---|---|
| 01 | Base Material | Hardwood |
| 02 | Face material | Tropical hardwood Species |
| 03 | Glue/Adhesion | Bonded with Phenol formaldehyde resin with provides boiling water proof |
| 04 | Calibrated | Yes |
| 05 | Compliance standard | Conforms to IS 710 (Indian standard for Marine plywood) |
| 06 | Thickness Range | Commonly available in 6 mm to 19 mm |
| 07 | Standard Size | Sheet typically comes in such as 8x4, 7x4, 6x4, 8x3, 7x3, 6x3 |
| 08 | Density | Avg density - 0.78g/cm 3 |
| 09 | Moisture Resistance | Up to 250 hrs. Boiling water proof |
| 10 | Moisture Content | 5 ~ 15% in oven dry method |
| 11 | Formaldehyde emission type | E1 Grade |
| 12 | GLP - Glue line protection | Glue line protection to resist termite, Borer & Fungus attack |
| 13 | Weather Resistance | Withstand adverse climatic conditions |
| 14 | Screw holding capacity | More than 1600 N |
| 15 | Fire Resistance | NO |
| 16 | Modulus of Elasticity-Dry state Along the grain Across the grain |
Avg - 7721 N/mm2 Min - 7560 N/mm2 Avg - 4265 N/mm2 Min - 4144 N/mm2 |
| 17 | Modulus of rupture-Dry state Along the grain Across the grain |
Avg - 55 N/mm2 Min - 50 N/mm2 Avg - 36 N/mm2 Min - 32 N/mm2 |
| 18 | Modulus of Elasticity-wet state Along the grain Across the grain |
Avg - 3942 N/mm2 Min - 3840 N/mm2 Avg - 2727 N/mm2 Min - 2648 N/mm2 |
| 19 | Modulus of rupture-wet state Along the grain Across the grain |
Avg - 36 N/mm2 Min - 29 N/mm2 Avg - 28 N/mm2 Min - 25 N/mm2 |
| 20 | Tensile strength Along the grain Across the grain Sum of the both grain |
59 N 40 N 99 N |
| 21 | Glue shear strength Dry state Wet state |
Avg - 1427 N/mm2 Min - 1378 N/mm2 Avg - 1239 N/mm2 Min - 1145 N/mm2 |
| 22 | Resistance to microorganism | Avq Strength - More than 1600 N |
| 23 | Compressive strength | More than 5500 N |
Features
- E1 MPF MARINE Grade Resin
- IS: 710 Grade
- Boiling water resistance for >200hrs
- All Glue Line Treated with Anti Borer, Termite & Fungi Chemicals
Advantages
- Water proof grade bonding
- Marine grade plywood
- Long lasting bond even under high moisture or humidity
- Stops insects and fungus from attacking the plywood
Benefits
- Low in Emission, strong in Water Proofing
- Can be used in Exterior conditions or severe humid environments
- Very high water-proofing and longevity of products
- No powders formation decay or termite Attack on your furniture
